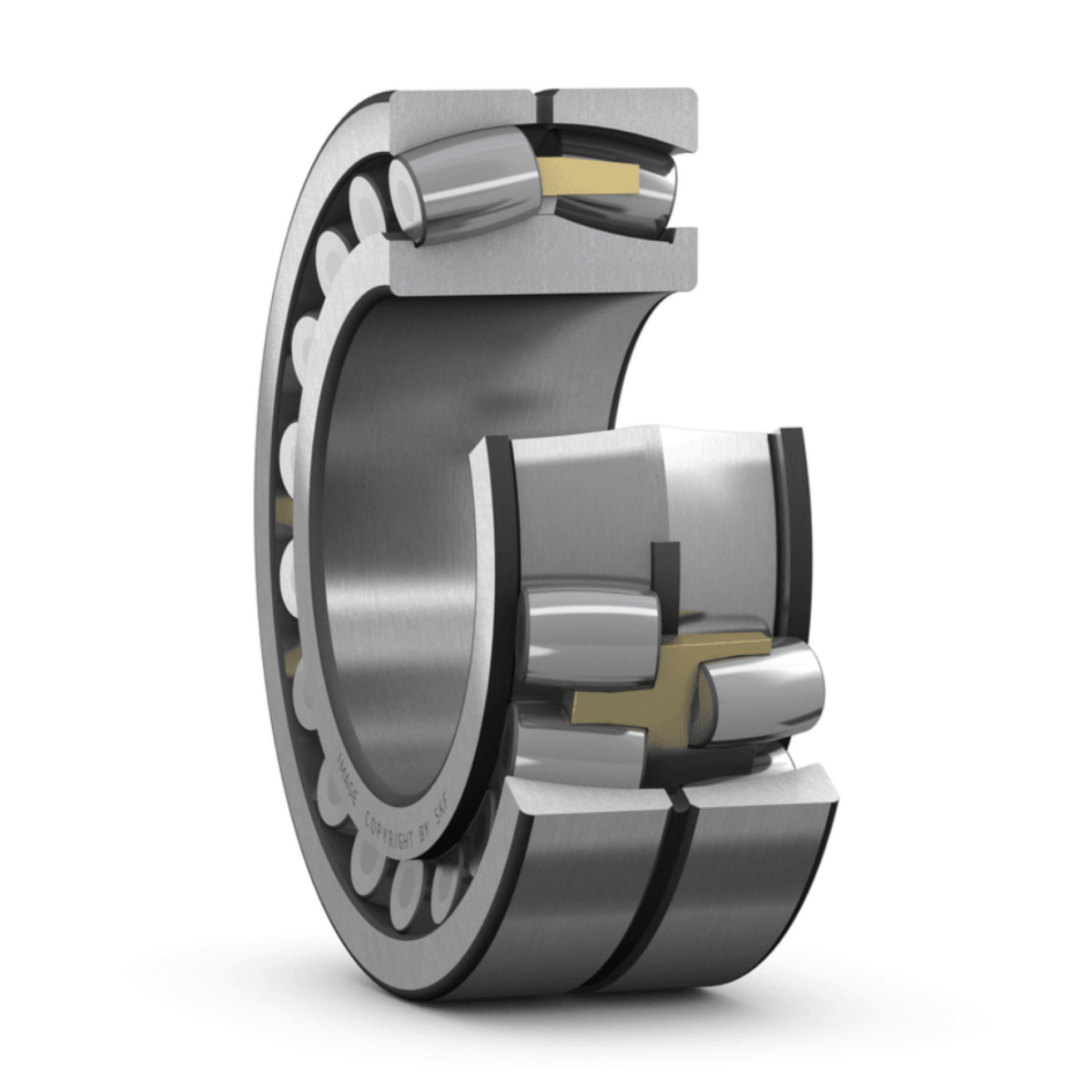

23268 CAK/W33 SKF Oynak Makaralı Rulman
DIMENSIONS
| d | 340 mm | |
|---|---|---|
| D | 620 mm | |
| B | 224 mm | |
| d2 | ≈ 427 mm | |
| D1 | ≈ 528 mm | |
| b | 22.3 mm | |
| K | 12 mm | |
| r1,2 | min. 6 mm | |
Tapered bore, taper 1:12 |
ABUTMENT DIMENSIONS
| Da | max. 594 mm | |
|---|---|---|
| ra | max. 5 mm |
CALCULATION DATA
| Basic dynamic load rating | C | 5362 kN |
|---|---|---|
| Basic static load rating | C0 | 7800 kN |
| Fatigue load limit | Pu | 550 kN |
| Reference speed | 560 r/min | |
| Limiting speed | 800 r/min | |
| Calculation factor | e | 0.35 |
| Calculation factor | Y1 | 1.9 |
| Calculation factor | Y2 | 2.9 |
| Calculation factor | Y0 | 1.8 |
MASS
| Mass bearing | 285 kg |
|---|
