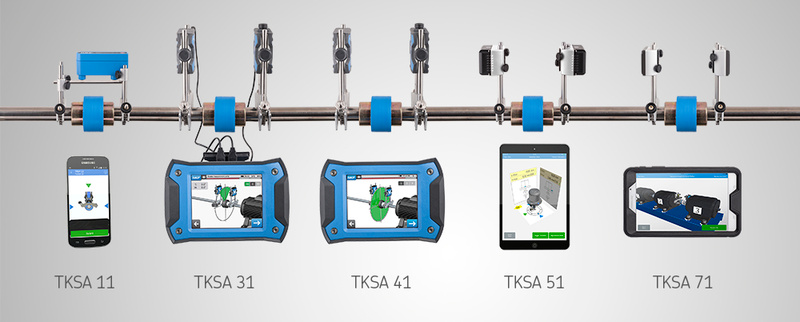

TKSA 41 SKF Mil Eksen Ayarı Cihazı
https://www.skf.com/binaries/pub12/Images/0901d1968038a6da-15303EN_TKSA41_tcm_12-227817.pdf
| Designation | TKSA 41 |
| Sensors and communication | 29 mm (1.1 in.) CCD with line laser Class 2 |
| Inclinometer ±0.5°; Bluetooth 4.0 LE and wired, USB cables | |
| System measuring distance | 0,07 to 4 m (0.23 to 13.1 ft) |
| Measuring errors | < 0,5% ±5 µm |
| Housing material | 20% Glass filled Polycarbonate |
| Operating time | Up to 16 hours |
| Rechargeable LiPo battery | |
| Dimensions | 120 × 90 × 36 mm (4.7 × 3.5 × 1.4 in.) |
| Weight | 220 g (0.5 lb) |
| Operating device | 5.6″ colour resistive touchscreen LCD display. High Impact PC/ABS with over mould |
| Software/App update | via USB stick |
| DU Operating time | Up to 8 hours (100% backlight) |
| Dimensions | 205 × 140 × 60 mm (8.1 × 5.5 × 2.4 in.) |
| Weight | 640 g (1.4 lb) |
| Alignment method | Alignment of horizontal shafts, 3 position measurement 9 -12 -3, automatic measurement, measurement (with min. 90° rotation), soft foot |
| Live correction values | Vertical and horizontal |
| Extra features | Machine library, QR code reading, screen orientation flip, automatic .pdf report |
| Fixture | 2 × V-brackets with chains, width 21 mm (0.8 in.) |
| Shaft diameters | 20 to 150 mm (0.8 to 5.9 in.) |
| 300 mm (11.8 in.) with optional extension chains (not included) | |
| Max. coupling height * | 105 mm (4.2 in.) with standard rods |
| 195 mm (7.7 in.) with extension rods (included) | |
| Power adapter | Input: 100V-240V 50/60Hz AC power supplier |
| Output: DC 12V 3A with EU, US, UK, AUS adapters | |
| Operating temperature | 0 to 45 °C (32 to 113 °F) |
| IP rating | IP 54 |
| Carrying case dimensions | 530 × 110 × 360 mm (20.9 × 4.3 × 14.2 in.) |
| Total weight (incl. case) | 4.75 kg (10.5 lb) |
| Calibration certificate | Supplied with 2 years validity |

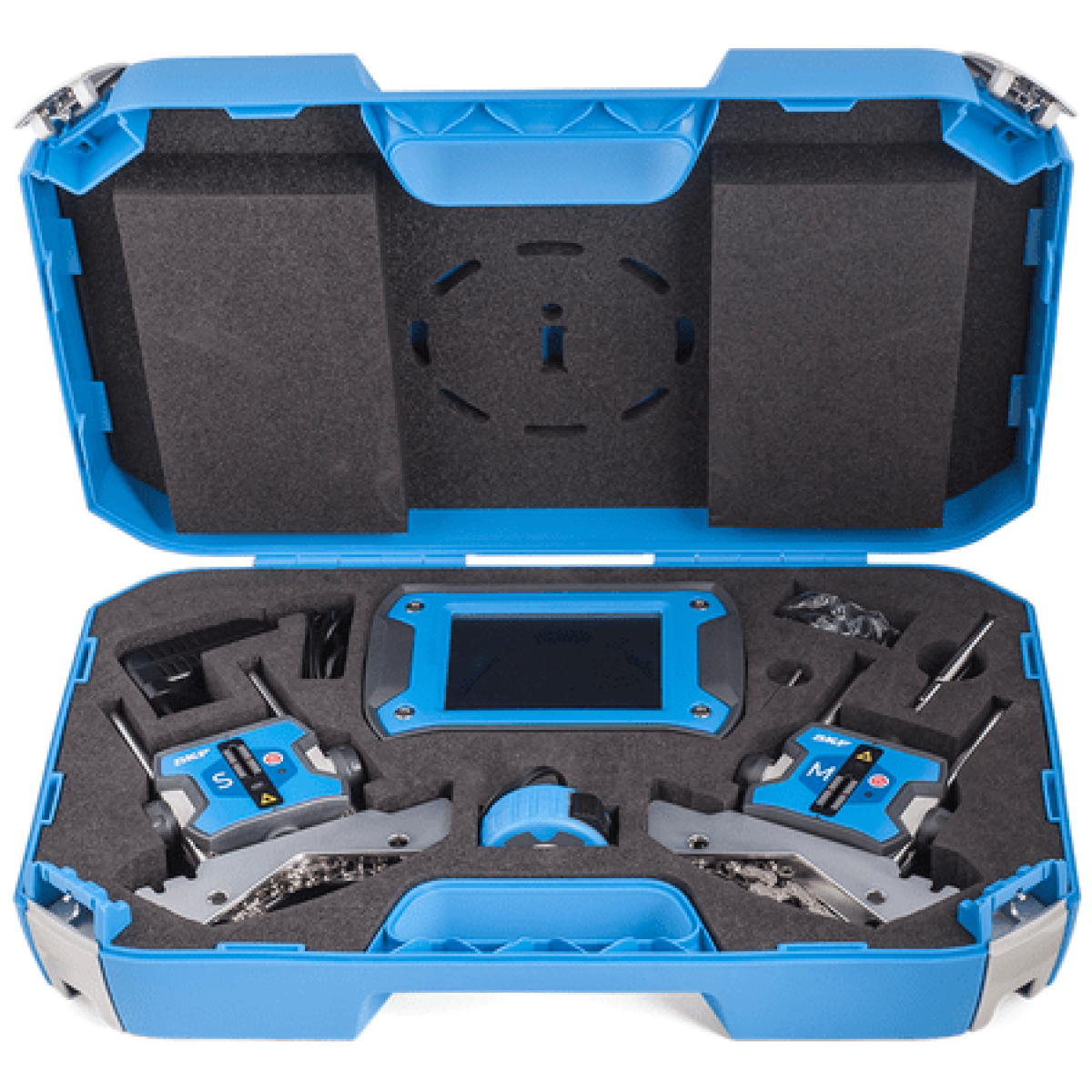

| Case content | 2 measuring units (M&S) |
| Display unit | |
| 2 shaft brackets with chains 400 mm (15.8 in.) and threaded rods 150 mm (5.9 in.) | |
| Chain tightening rod | |
| 4 threaded extension rods 90 mm (3.5 in.) | |
| Power supply with country adapters | |
| 2 micro USB to USB cables | |
| Measuring tape | |
| Printed certificate of calibration and conformance | |
| Printed quick start guide (EN) | |
| 2x A5 sheets with 6x QR code stickers per sheet (total of 12x stickers) | |
| SKF carrying case | |
| * Depending on the coupling, the brackets can be mounted on the coupling, reducing the coupling height limitation. | |
| Designation | Description |
| TKSA 41-QR | 5x A5 sheets with 6x QR code stickers per sheet (total of 30x stickers) |
| TKSA 41-DU | 1x TKSA 41 Display Unit |
| TKSA 41-M | 1x TKSA 41 M Measuring Unit (incl. 1x USB Cable) |
| TKSA 41-S | 1x TKSA 41 S Measuring Unit (incl. 1x USB Cable) |
| TKSA ROD90 | 4x 90 mm (3.5 in) rods threaded for TKSA 31/41/60/80 |
| TKSA 41-STDCH | 2x 400 mm (15.8 in) standard chains for TKSA 31/41 |
| TKSA VBK | 2x Standard V-brackets (No rods, no chain supplied) for TKSA 31/41/60/80 |
| TKSA TOMMYBAR | 1x Tommy bar for TKSA 31/41/60/80 |
| TKSA EXTCHARG | 1x Power supply with EU, US, UK, AUS adapters for TKSA 31/41/60/80 |
| TDTC 1/C | Toolcase without inlay |
