SL045020-D-PP-2NR INA

328,00

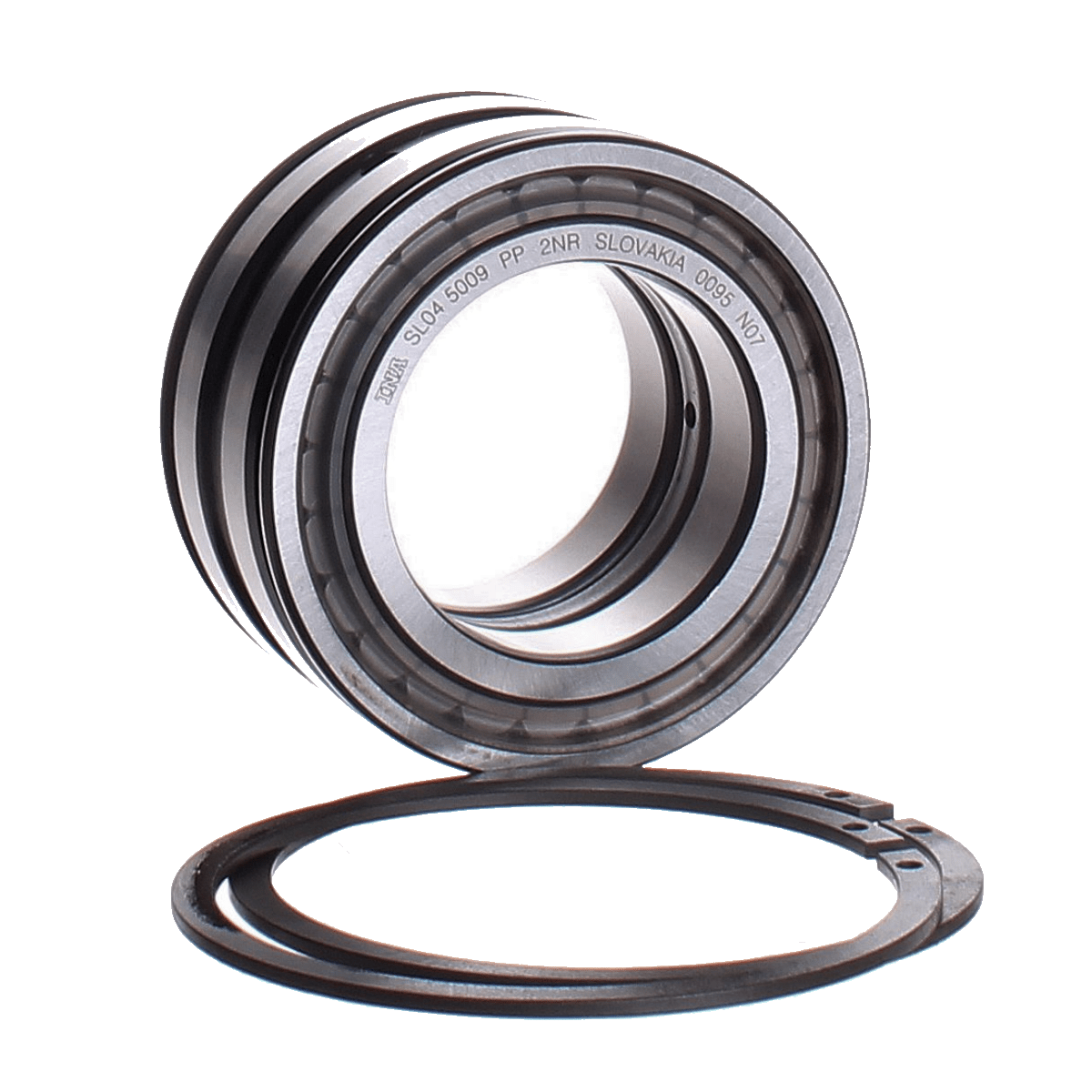

SL045020-D-PP-2NR INA Çift Sıra Silindirik Makaralı Rulman

Açıklama

SL045020-D-PP-2NR INA Çift Sıra Silindirik Makaralı Rulman

00007E22
SL045020-D-PP-2NR

Cylindrical roller bearing

Cylindrical roller bearing SL04..-D-PP, full complement roller set, two-row, locating bearing, central rib on outer ring, 3 ribs on inner ring, type SL04

Cylindrical roller bearing

Cylindrical roller bearing

d
100 mm
Bore diameter
D
150 mm
Outside diameter
B
67 mm
Width
Cr
330,000 N
Basic dynamic load rating, radial
C0r
550,000 N
Basic static load rating, radial
Cur
79,000 N
Fatigue load limit, radial
nG Grease
1,300 1/min
Limiting speed for grease lubrication
3.74 kg
Weight
Dimensions
C
66 mm
Width, outer ring
C1
59.2 mm
Distance ring grooves
D1
147 mm
Diameter of groove
m
4.2 mm
Width of groove
rmin
0.6 mm
Minimum chamfer dimension
t
1.5 mm
Chamfer width
X
54 mm
Distance between rolling elements
Mounting dimensions
Ca1
54 mm
Mounting dim for snap ring WER (not included in delivery) Tolerance: 0/-0,2
Ca2
51 mm
Mounting dim for retaining ring to DIN 471 (not incl. In delivery) Tol: 0/-0,2
d1
117.5 mm
Rib diameter inner ring
d2
128 mm
Sealing diameter (rib)
d3
162 mm
Outside diameter of snap ring WRE
d1 min
118 mm
Minimum diameter shaft shoulder
ra max
0.6 mm
Maximum recess radius
30 °
Chamfer angle
-0.2 mm
Lower distance snap ring tolerance
-0.2 mm
Lower distance retaining ring tolerance
0.2 mm
Upper distance ring groove tolerance
Temperature range
Tmin
-30 °C
Operating temperature min.
Tmax
80 °C
Operating temperature max.
