Açıklama

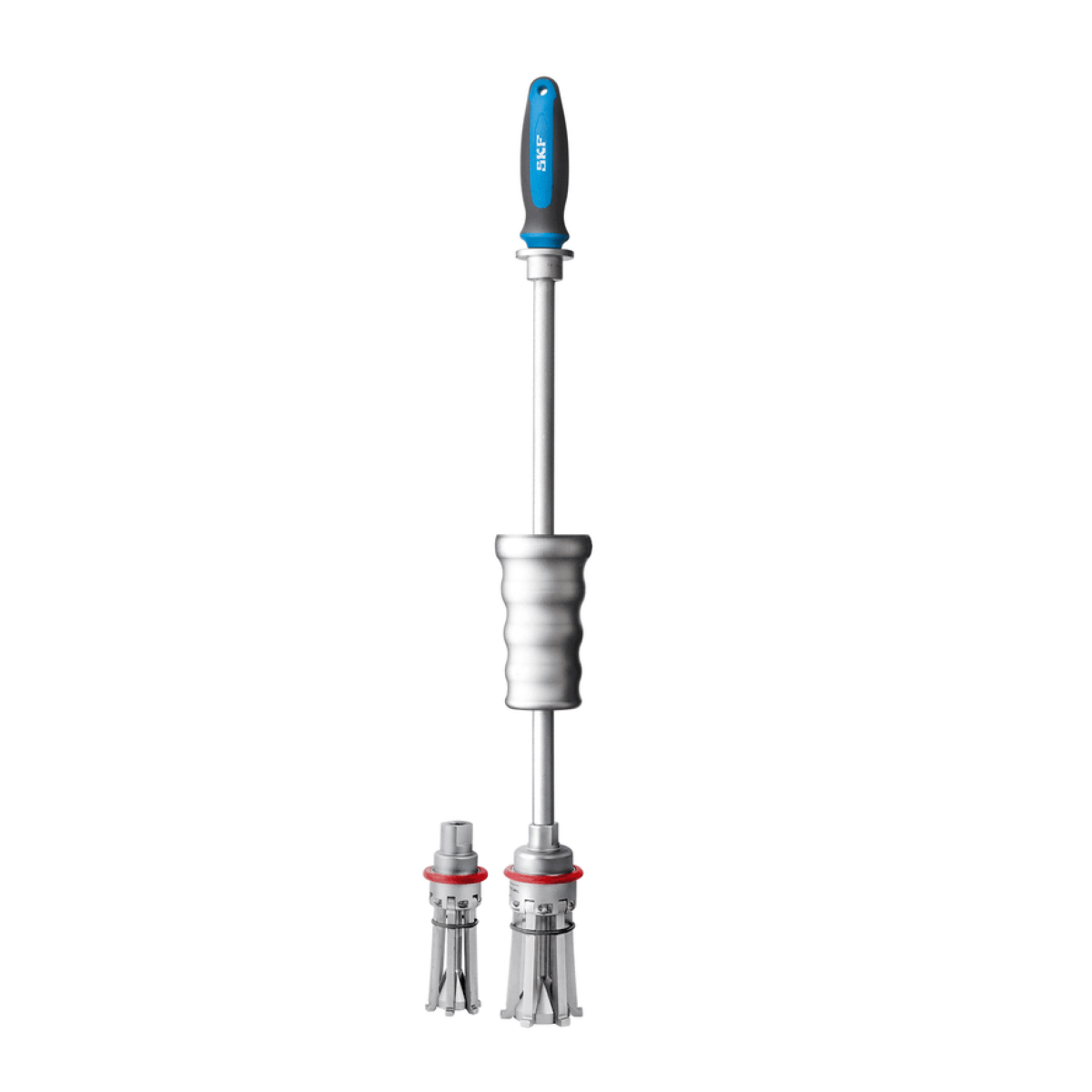

TMIP 30-60 SKF Rulman İç Çektirme Kiti
| Designation | TMIP 30–60 |  |
| Bearing bore diameter | 30–60 mm (1.2–2.4 in.) | |
| Carrying case dimensions (l x w x h) | 530 x 85 x 180 mm (20.9 x 3.4 x 7.0 in.) | |
| Weight | 5,4 kg (11.9 lb) |
| TMIP 30-60 | Bearing width | Space behind bearing | Housing depth | |||
| mm | in | mm | in | mm | in | |
| TMIP E30-40 | >35 | >1.4 | 11,5 | 0.45 | 97 | 3.8 |
| TMIP E45-60 | >64 | >2.5 | 15 | 0.6 | 102 | 4.0 |
