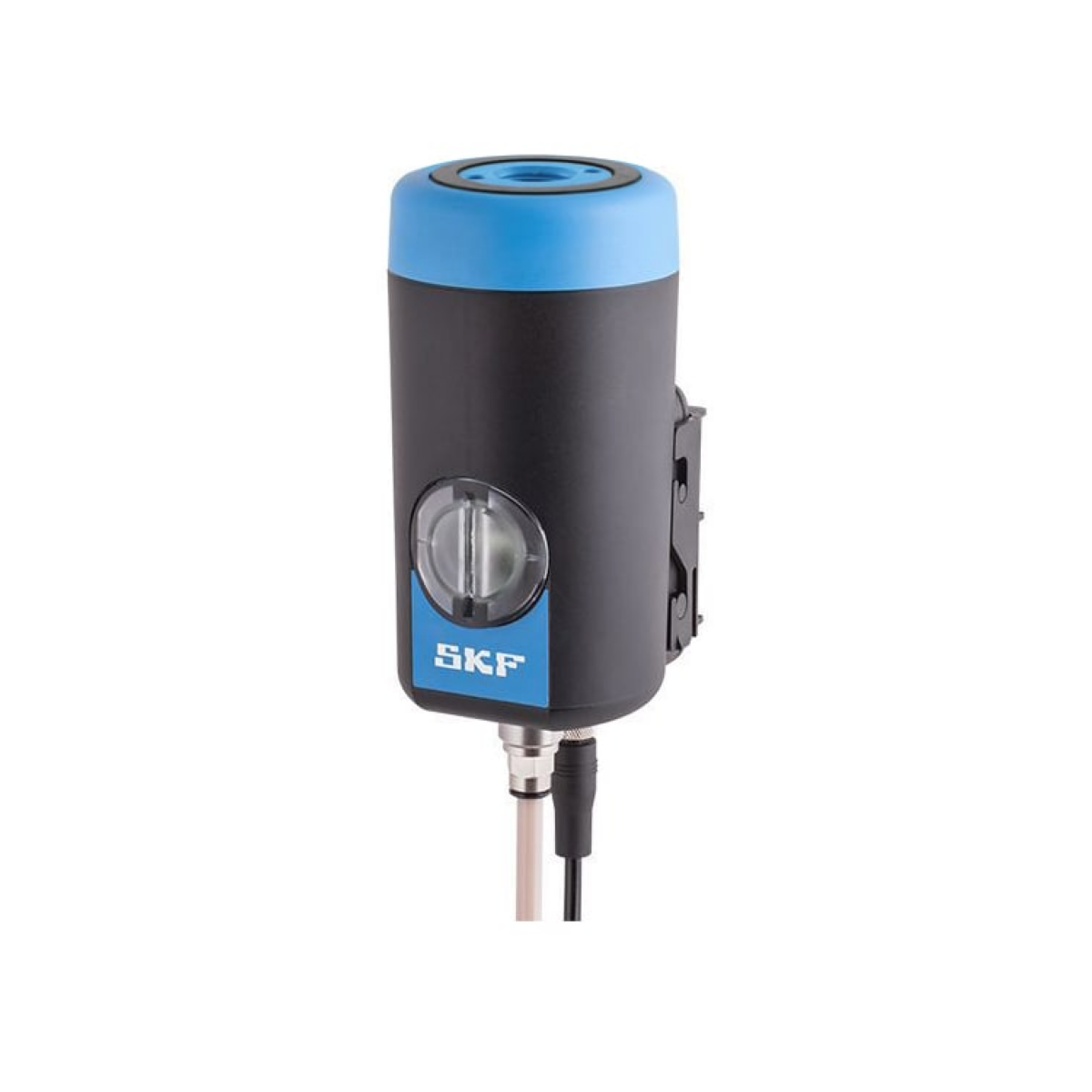

TLMR 101 SKF ElektroMekanik Tek Noktadan Otomatik Yağlayıcı Batarya
https://www.skf.com/binaries/pub12/Images/0901d196802b5a5a-14066EN_TLMR_tcm_12-138604.pdf
| Designation | Description |
| TLMR 101 | Lubricator powered by batteries |
| TLMR 201 | Lubricator powered by 12-24V DC |
| Grease capacity | 120 | 120 ml (4.1 fl. oz US) |
| 380 | 380 ml (12.8 fl. oz US) | |
| Emptying time | User adjustable: 1,2,3,6,9,12, 18, 24 months or purge | |
| Lowest setting | 120 | 0,16 ml per day (0.005fl. oz US) |
| 380 | 0,5 ml per day (0.016 fl. oz US) | |
| Highest setting | 120 | 3,9 ml per day (0.13 fl. oz US) |
| 380 | 12,5 ml per day (0.42 fl. oz US) | |
| Purge | 31 ml per hour (1 fl. oz US) | |
| Ambient temperature range | -25°C to 70 °C (-13 °F to 158 °F) | |
| Maximum operating pressure | 30 bar (435 psi) | |
| Drive mechanism | Electro mechanical | |
| Connection thread | Female G 1/4 | |
| Maximum feed line length | Up to 5 meters (16 ft) * | |
| LED status indicators | OK (every 8 seconds green) | |
| Almost empty (every 8 seconds green and red) | ||
| Error (every 8 seconds red) | ||
| Protection class DIN EN 60529 | IP67 | |
| Protection class DIN 40 050 Teil 9 | IP 6k9k | |
| Battery TLMR 101 | 4 AA Lithium batteries | |
| Power TLMR 201 | 12 -24 Volt DC via M12-A connection ** | |
| Dimensions | Coming from IFU | |
| Disposal | Industrial waste | EU code |
| Canister | 15 01 10 | |
| Battery pack | 16 06 05 | |
| * The maximum feed line length is dependent on ambient temperature, grease type and back pressure created by the application.
** TLMR 201 is powered by a M12-A plug (TLMR 201-1) which has to be ordered separately |
||
