Açıklama

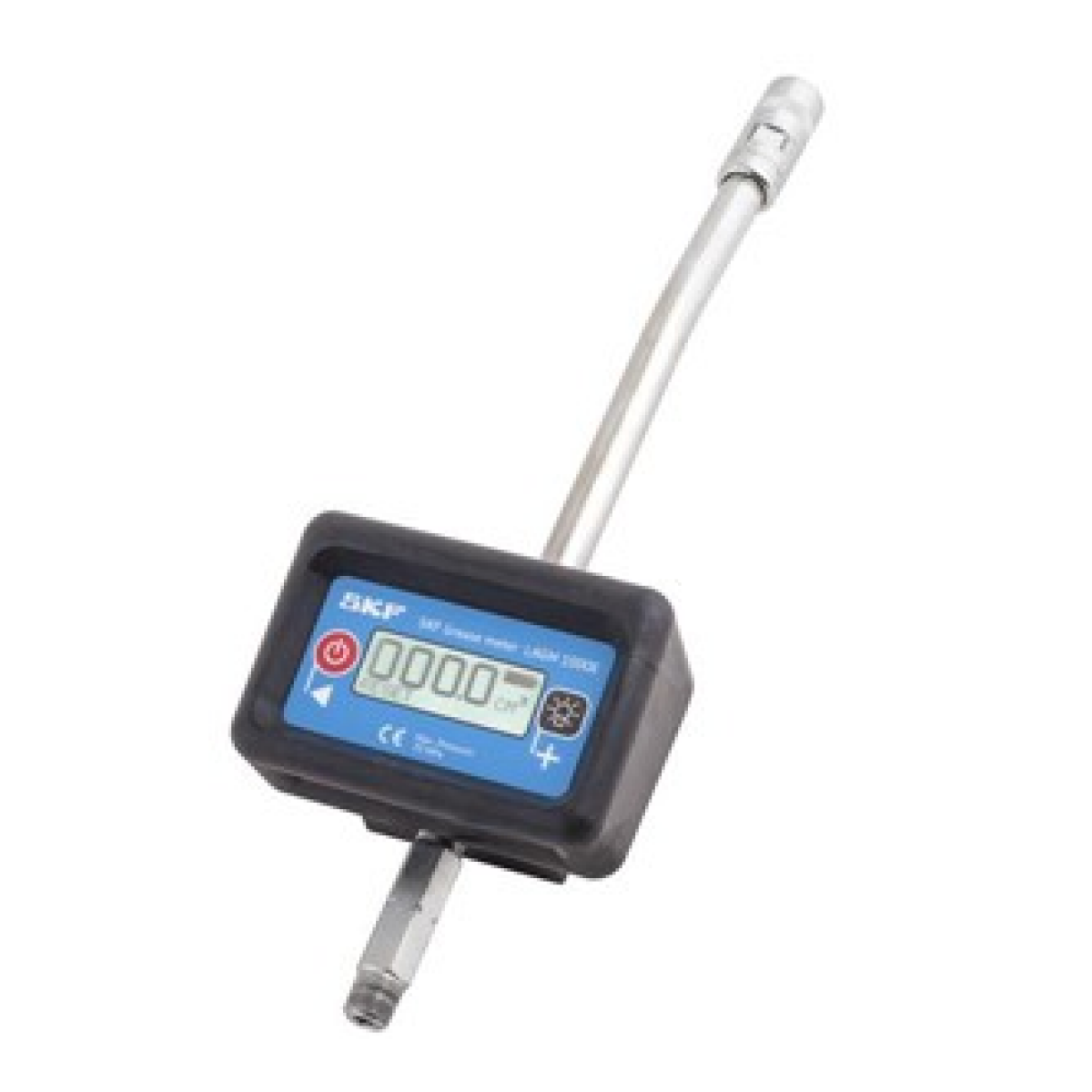

LAGM 1000E SKF Gres Metre Gres Aktarım Ayar Cihazı
| Designation | LAGM 1000E |
| Housing material | Aluminium, anodised |
| Weight | 0.4 kg (0.88 lb) |
| Maximum grease flow | 1 000 cm³/min (34 US fl. oz/min) |
| IP rating | IP 67 |
| Suitable greases | NLGI 0 – NLGI 3 |
| Maximum operating pressure | 700 bar (10 000 psi) |
| Thread connections | M10 x 1 |
| Display | Lit LCD (4 digits / 9 mm) |
| Accuracy | ±3% from 0 – 300 bar |
| ±5% from 300 – 700 bar | |
| Selectable units | cm³, g, US fl. oz or oz |
| Display lamp auto switch off | 15 seconds after last pulse |
| Low battery | Indication on display |
| Battery type | 1.5 V AA Alkaline |
| Unit auto switch off | Programmable |
