Description
Specifications

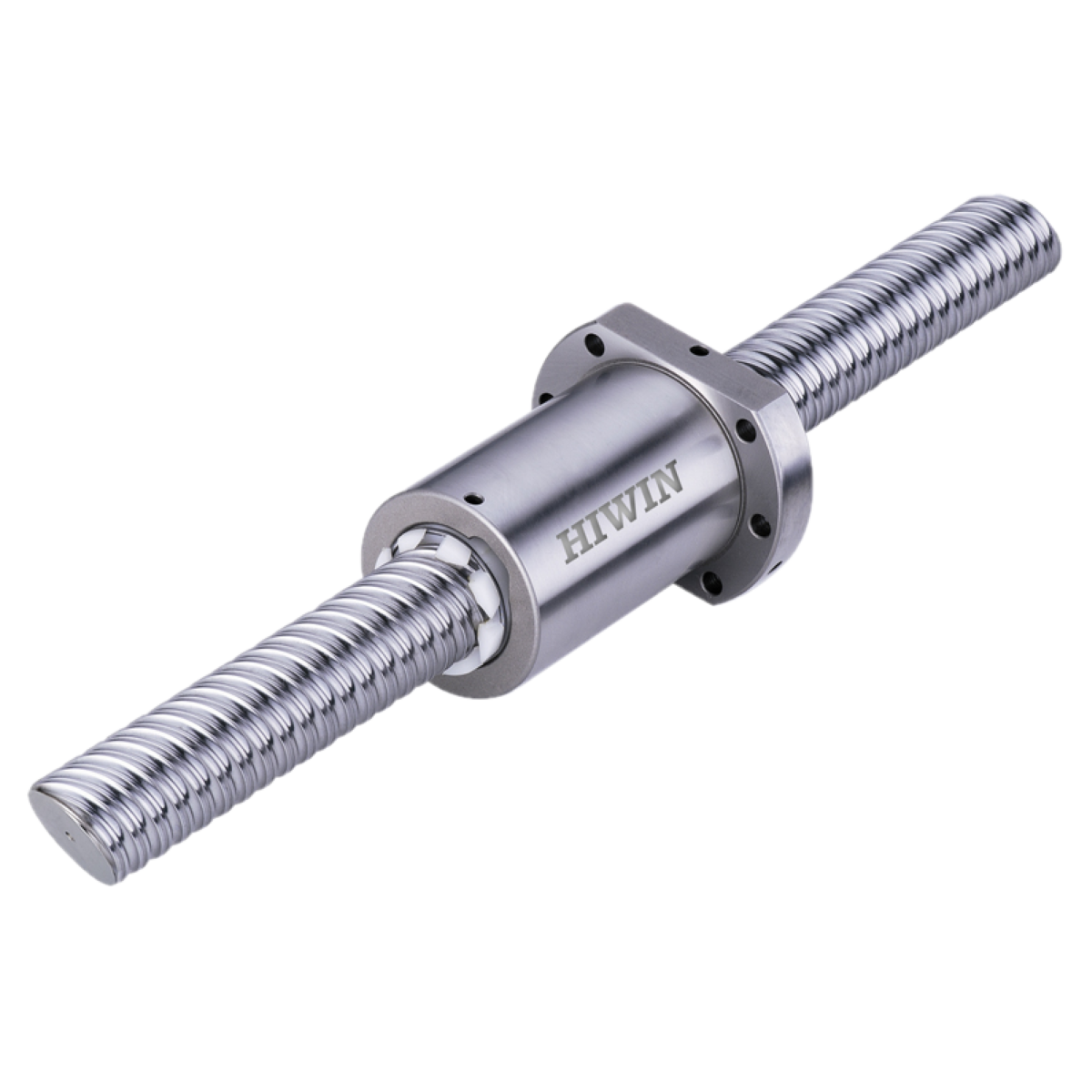

Type of Ballscrew |
Rolled Ballscrew |
Hand Screw |
Right Hand Screw |
Lead Deviation (mm/300mm) |
C7 |
Nominal Diameter |
20 mm |
Lead |
5 mm |
Nut Type |
FSI |
Number of Circuits |
T4: 4 |
Ball Diameter |
3.175 mm |
Support Bearing – Motor Side |
Standard Support Bearing |
Screw End Machining I – Motor Side |
BK15 |
Keyways Motor Side |
No Keyway |
Support Bearing – Other Side |
Standard Support Bearing |
Screw End Machining II – the Other Side |
Free |
Thread Length |
52 |
