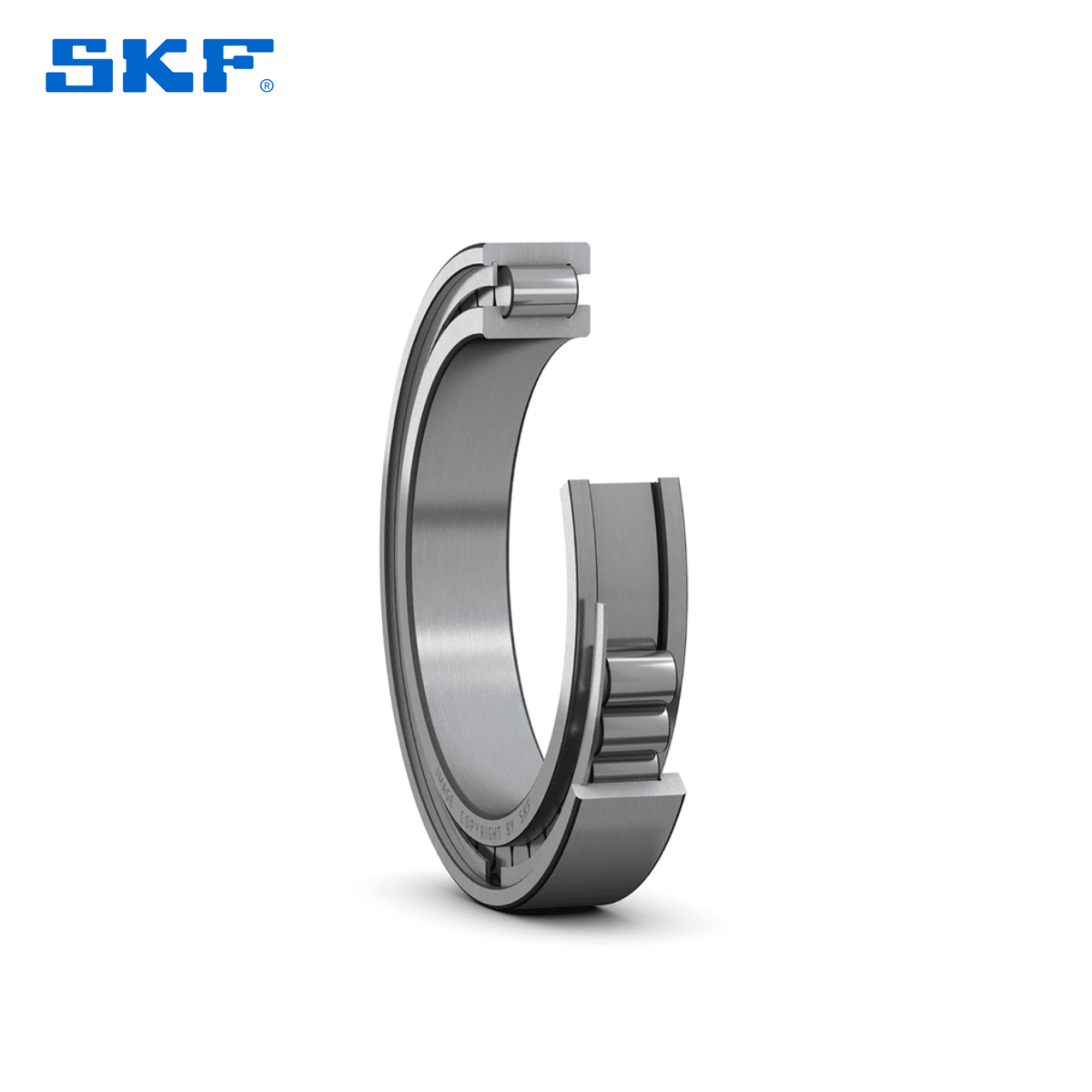

NCF 2988 V/C3 SKF Silindirik Makaralı Rulman
DIMENSIONS
| d | 440 mm | |
|---|---|---|
| D | 600 mm | |
| B | 95 mm | |
| d1 | ≈ 502 mm | |
| D1 | ≈ 545 mm | |
| E | 565.5 mm | |
| s | max. 6 mm | |
| r1,2 | min. 4 mm |
ABUTMENT DIMENSIONS
| da | min. 455 mm | |
|---|---|---|
| das | 492 mm | |
| Da | max. 585 mm | |
| Db | max. 585 mm | |
| ra | max. 3 mm |
CALCULATION DATA
| Basic dynamic load rating | C | 2010 kN |
|---|---|---|
| Basic static load rating | C0 | 4400 kN |
| Fatigue load limit | Pu | 380 kN |
| Reference speed | 430 r/min | |
| Limiting speed | 530 r/min | |
| Calculation factor | kr | 0.2 |
| Calculation factor | e | 0.3 |
| Calculation factor | Y | 0.4 |
MASS
| Mass bearing | 80 kg |
|---|
