MCYR 25 SX McGill CAMROL®

48,11

MCYR 25 SX McGill CAMROL® Destek Rulmanı

Açıklama

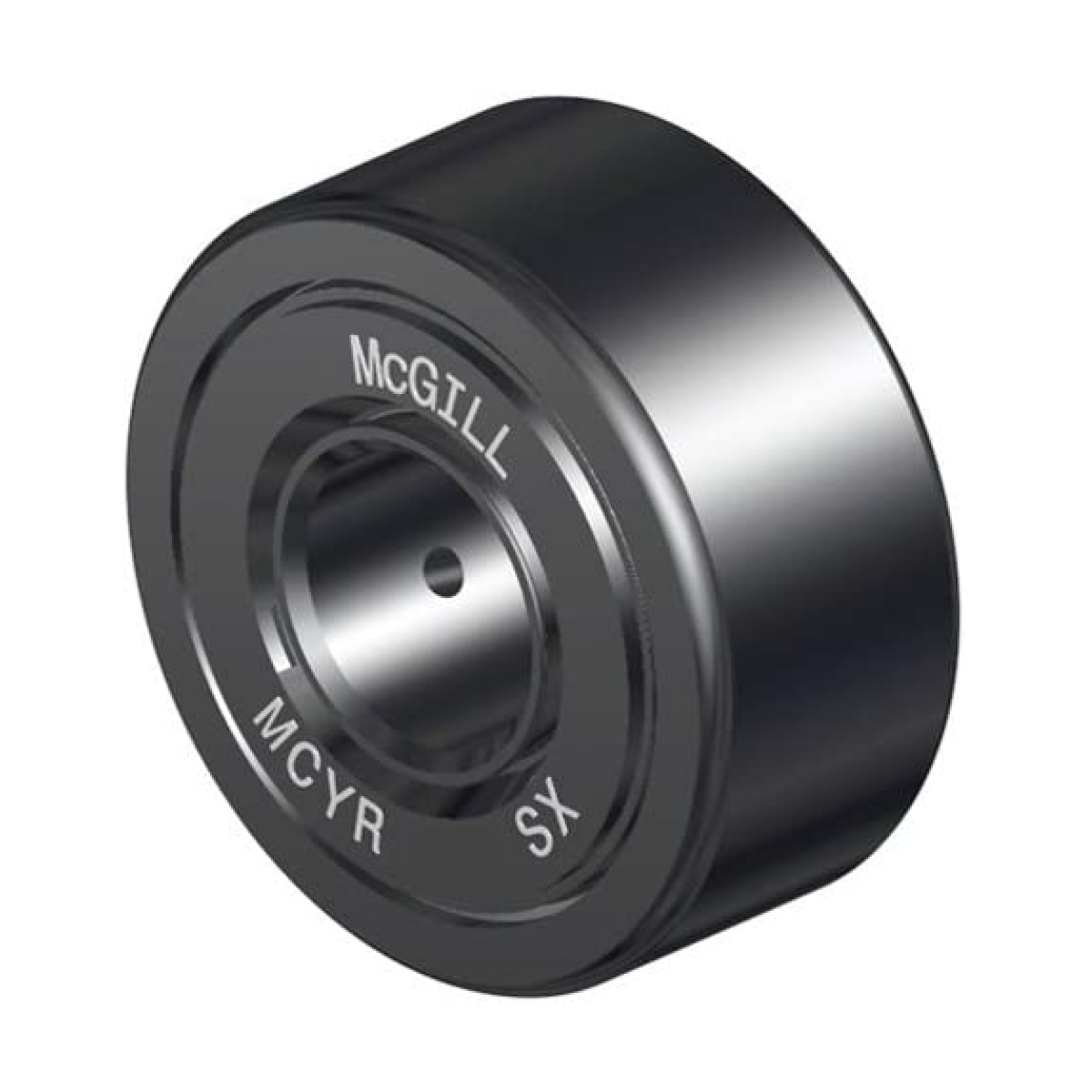

MCYR 25 SX McGill CAMROL® Cylindrical Metric Cam Follower – Yoke Mount Roller – Sealed

Catalog #:MCYR 25 SX
Part #:3625011101
Weight:0.64 LB

General Specifications

UPC: 726166054007 Weight: 0.64 LB
Packaged Length: 2.7 Inches Packaged Width: 1.4 Inches
Packaged Height: 2.6 Inches

Technical Specifications

Sealing: Sealed O.D. Configuration: Cylindrical
Dynamic Track Roller Load Rating (N): 28,440 N Limiting Speed: 2,200
Rolling Element: Needle Roller – Full Complement Relubricatable: Yes
Material: Bearing Steel, Black Oxide Finish Overall width – mm: 25 mm
Static Load Rating: 13,197 Tolerance Class: P0
Roller Diameter – mm: 52 mm Roller Width – mm: 24 mm
Dynamic Load Rating – N: 34,130 Platform: CAMROL®
Roller Shape: Cylindrical Minimum Boss Diameter – mm: 36 mm
Static Track Roller Load Rating: 58,700 Bore Diameter – mm: 25 mm
