KWSE45-L-V2-G3 INA Uzun Araba

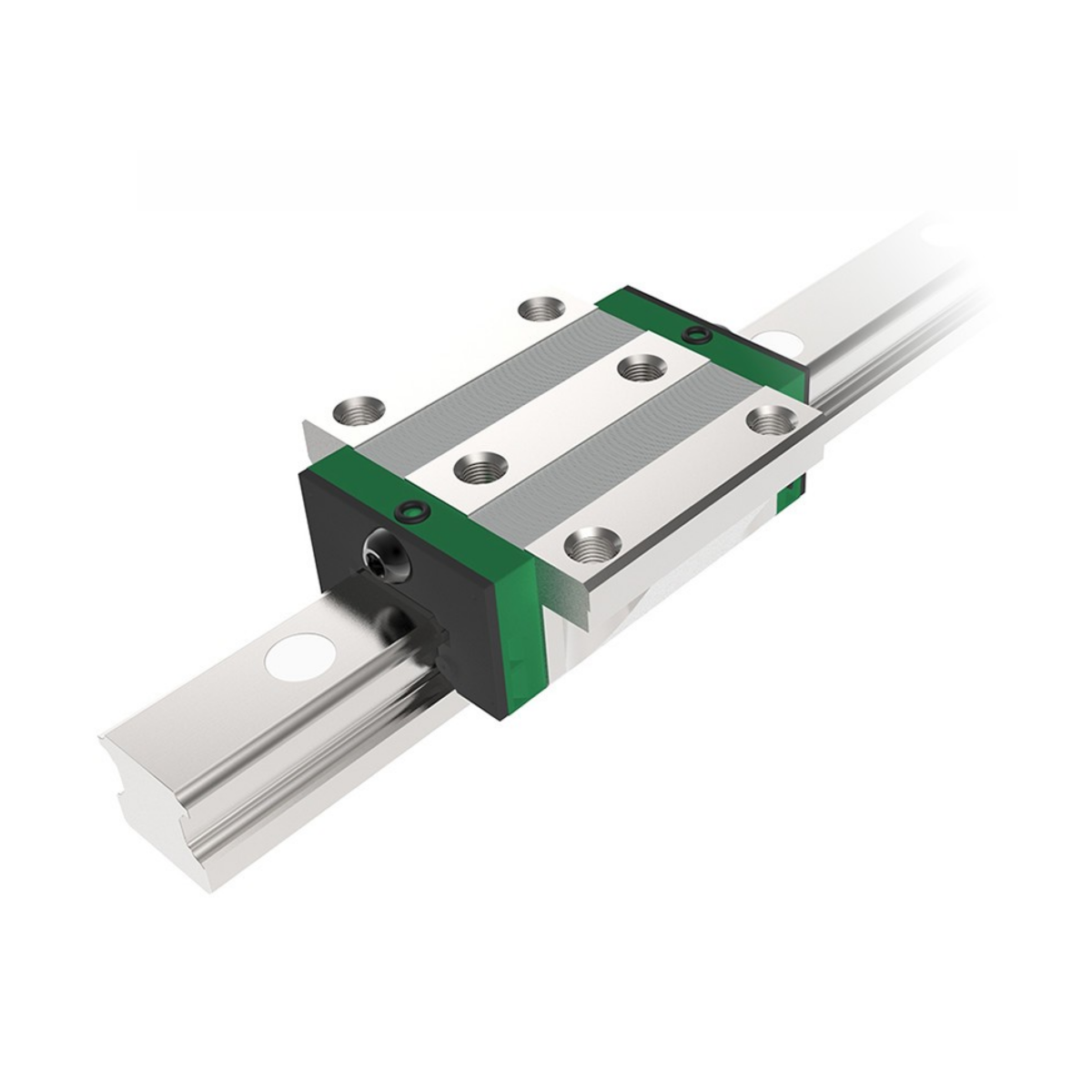

Recirculating ball bearing carriage
Long carriage for six-row linear recirculating ball bearing and guideway assembly
Main Dimensions & Performance Data
H
60 mm
height system
B
120 mm
width carriage
L
174.3 mm
overall length carriage
I C
98,000 N
dynamic load rating, load direction I: compressive load
I C0
236,000 N
static load rating, load direction I: compressive load
II C
89,000 N
dynamic load rating, load direction II: tensile load
II C0
159,000 N
static load rating, load direction II: tensile load
III C
93,400 N
dynamic load rating; basic dynamic load rating, Load direction III: lateral load
III C0
168,000 N
static load rating, Load direction III: lateral load
4 kg
Weight
Mounting dimensions
A1
37.5 mm
JB
100 mm
b
45 mm
width rail
A2
10 mm
L1
138.7 mm
JL
80 mm
JLZ
60 mm
H1
8.6 mm
H4
17.7 mm
H5
9 mm
T5
15 mm
T6
15 mm
G2
M12
fixing screws below (DIN ISO 4762-12.9)
G2 MA
83 Nm
maximum tightening torque
K3
M10
fixing screws below (DIN ISO 4762-12.9)
K3 MA
83 Nm
maximum tightening torque
K6
M10
fixing screws below (DIN ISO 4762-12.9)
K6 MA
48 Nm
maximum tightening torque
D2
10.6 mm
N2
6 mm
max. diameter of lubrication hole in adjacent construction
JL5
33.45 mm
position lubrication connector
A3
8.5 mm
position lubrication connector
t A3
7 mm
maximum permissible screw depth for lubrication connectors
O
7×1,5 mm
O-Ring DIN 3771
M0X
6,200 Nm
Moment
M0Y
4,050 Nm
Moment
M0Z
3,650 Nm
Moment
