HJ-263516 EXHOO

49,00 44,50

HJ-263516 EXHOO İğneli Rulman 3110-00-227-3250

Kategoriler:

Açıklama

HJ-263516 EXHOO

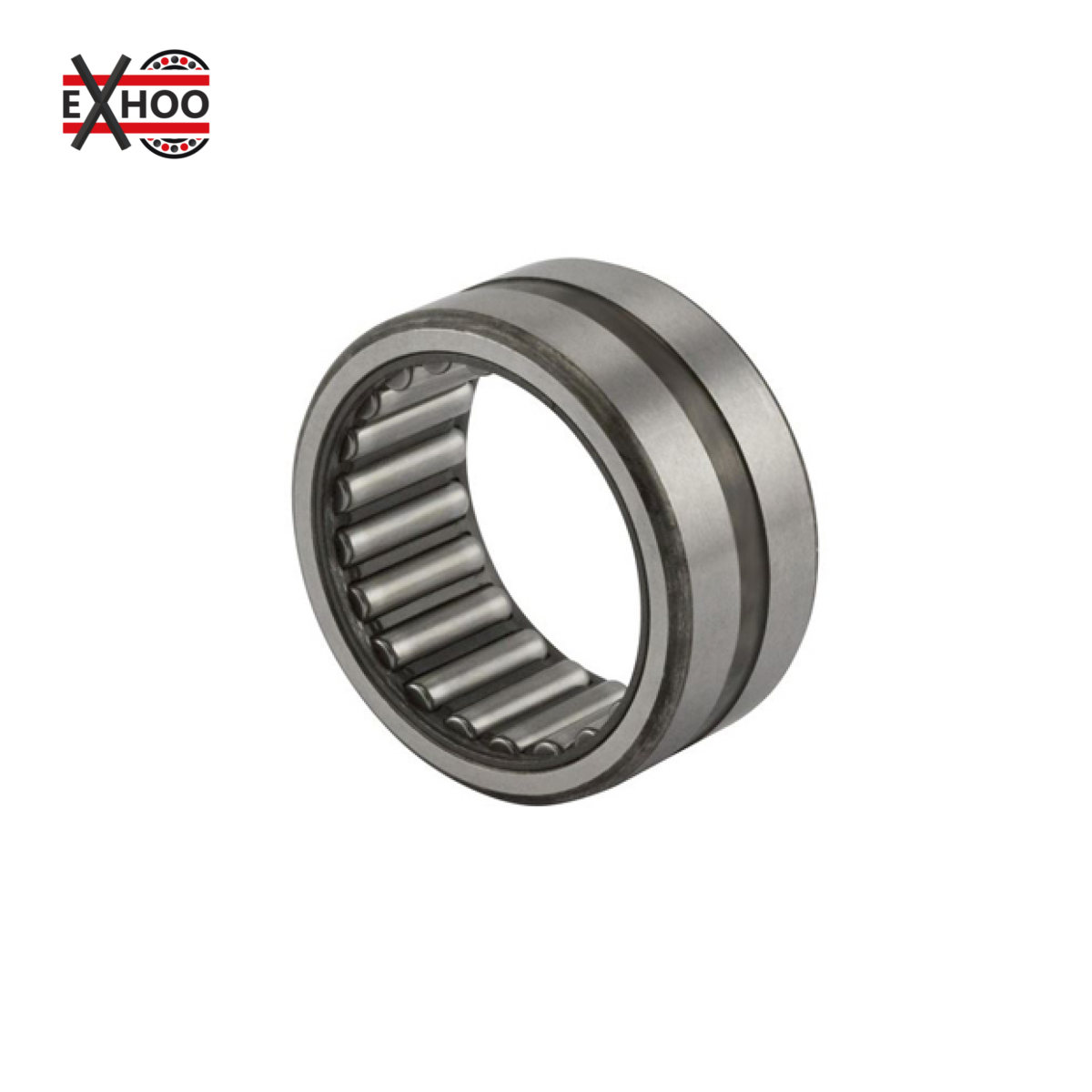

Needle roller bearings – Heavy-duty needle roller bearings – Inch series, caged, without inner ring

Specifications
(Boundary dimensions …etc)

Fw
41.275 mm
D
55.563 D
C(B)
25.400 mm
r(min.)
1.52 mm
Used with inner ring No.
IR-212616
Basic load ratings : Cr
48.5 kN
Basic load ratings : C0r
76.5 kN
Fatigue load limit : Cu
12.1 kN
Limiting speeds(Grease lub.)
7000 min-1
Limiting speeds(Oil lub.)
11000 min-1

Mounting dimensions

Recommended dimensions – Clearance fit : S(max.)
41.275 mm
Recommended dimensions – Clearance fit : S(min.)
41.260 mm
Recommended dimensions – Clearance fit : H(max.)
55.593 mm
Recommended dimensions – Clearance fit H(min.)
55.563 mm
Recommended dimensions – Tight transition fit : S(
41.250 mm
Recommended dimensions – Tight transition fit : S(
41.234 mm
Recommended dimensions – Tight transition fit : H(
55.555 mm
Recommended dimensions – Tight transition fit : H(
55.524 mm
Shoulder dia. : Da
50.80

Refer.

(Refer.)Mass
0.163 kg
