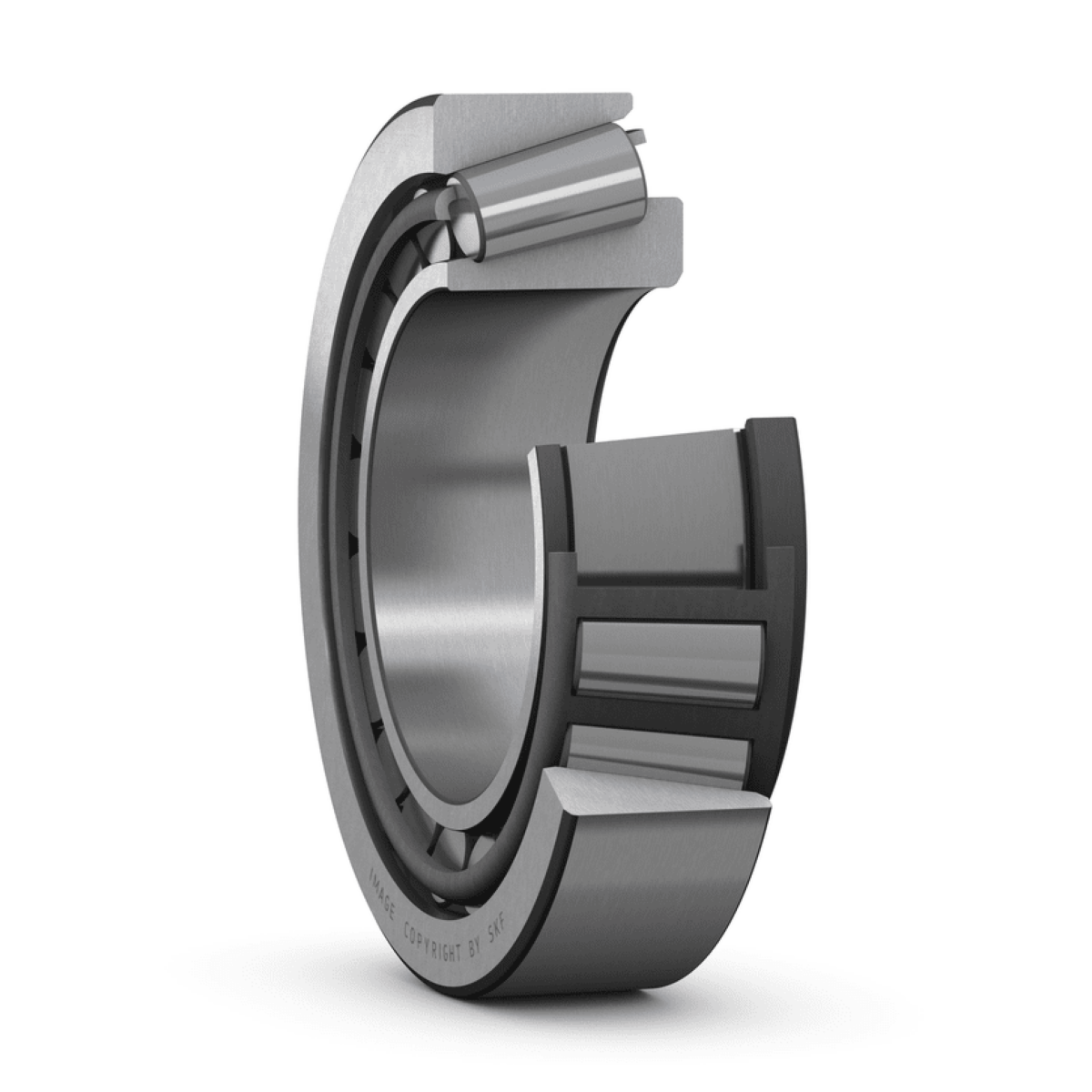

HH 224335/310/HA1VB586 SKF Konik Makaralı Rulman
Tapered roller bearings, single row
Bearing data
- Tolerances:
metric bearings: Normal and CL7C, CLN
inch bearings: Normal and CL, deviating width
Bearing interfaces
| Dimension series | HH 224300 |
|---|
DIMENSIONS
| d | 101.6 mm | |
|---|---|---|
| D | 212.725 mm | |
| T | 66.675 mm | |
| d1 | ≈ 158.1 mm | |
| B | 66.675 mm | |
| C | 53.975 mm | |
| r1,2 | min. 7 mm | |
| r3,4 | min. 3.3 mm | |
| a | 46.93 mm |
ABUTMENT DIMENSIONS
| da | max. 132 mm | |
|---|---|---|
| db | min. 123.5 mm | |
| Da | min. 184 mm | |
| Da | max. 199 mm | |
| Db | min. 202 mm | |
| Ca | min. 10 mm | |
| Cb | min. 12.5 mm | |
| ra | max. 7 mm | |
| rb | max. 3.3 mm |
CALCULATION DATA
| Basic dynamic load rating | C | 619 kN |
|---|---|---|
| Basic static load rating | C0 | 830 kN |
| Fatigue load limit | Pu | 88 kN |
| Reference speed | 2200 r/min | |
| Limiting speed | 3000 r/min | |
| Calculation factor | e | 0.33 |
| Calculation factor | Y | 1.8 |
| Calculation factor | Y0 | 1 |
MASS
| Mass bearing | 11.2 kg |
|---|
