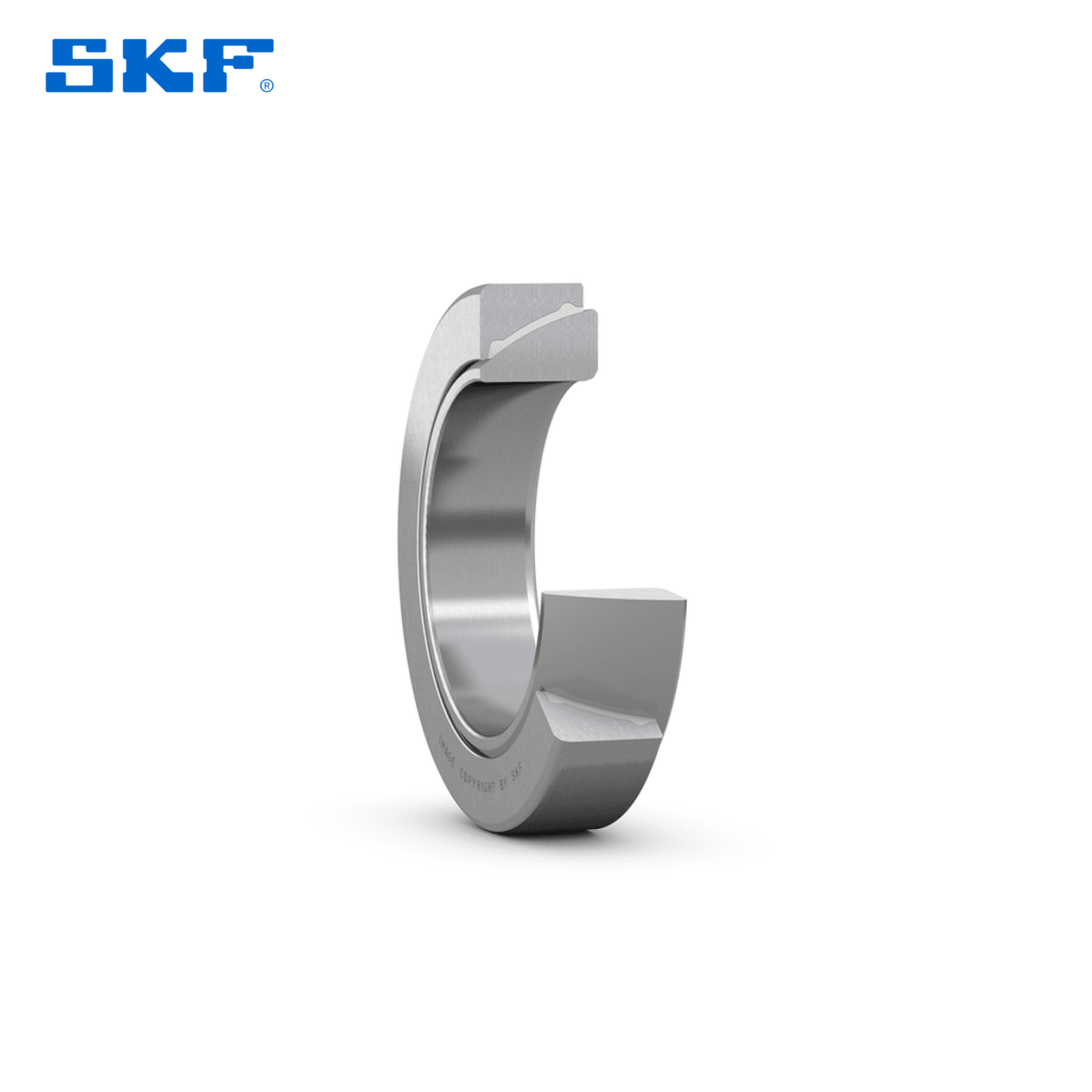

GAC 35 F SKF Rulman
Angular contact spherical plain bearings
DIMENSIONS
| d | 35 mm | |
|---|---|---|
| D | 62 mm | |
| T | 18 mm | |
| α | 4.2 ° | |
| dk | 55.5 mm | |
| B | 18 mm | |
| C | 16 mm | |
| r1 | min. 1 mm | |
| r2 | min. 0.3 mm | |
| s | 2.1 mm |
ABUTMENT DIMENSIONS
| da | max. 40 mm | |
|---|---|---|
| db | max. 50 mm | |
| Da | min. 45 mm | |
| Db | min. 56.5 mm | |
| ra | max. 1 mm |
CALCULATION DATA
| Basic dynamic load rating | C | 35.5 kN |
|---|---|---|
| Basic static load rating | C0 | 57 kN |
| Specific dynamic load factor | K | 50 N/mm² |
| Specific static load factor | K0 | 80 N/mm² |
| Material constant | KM | 480 |
MASS
| Mass plain bearing | 0.27 kg |
|---|
