Açıklama

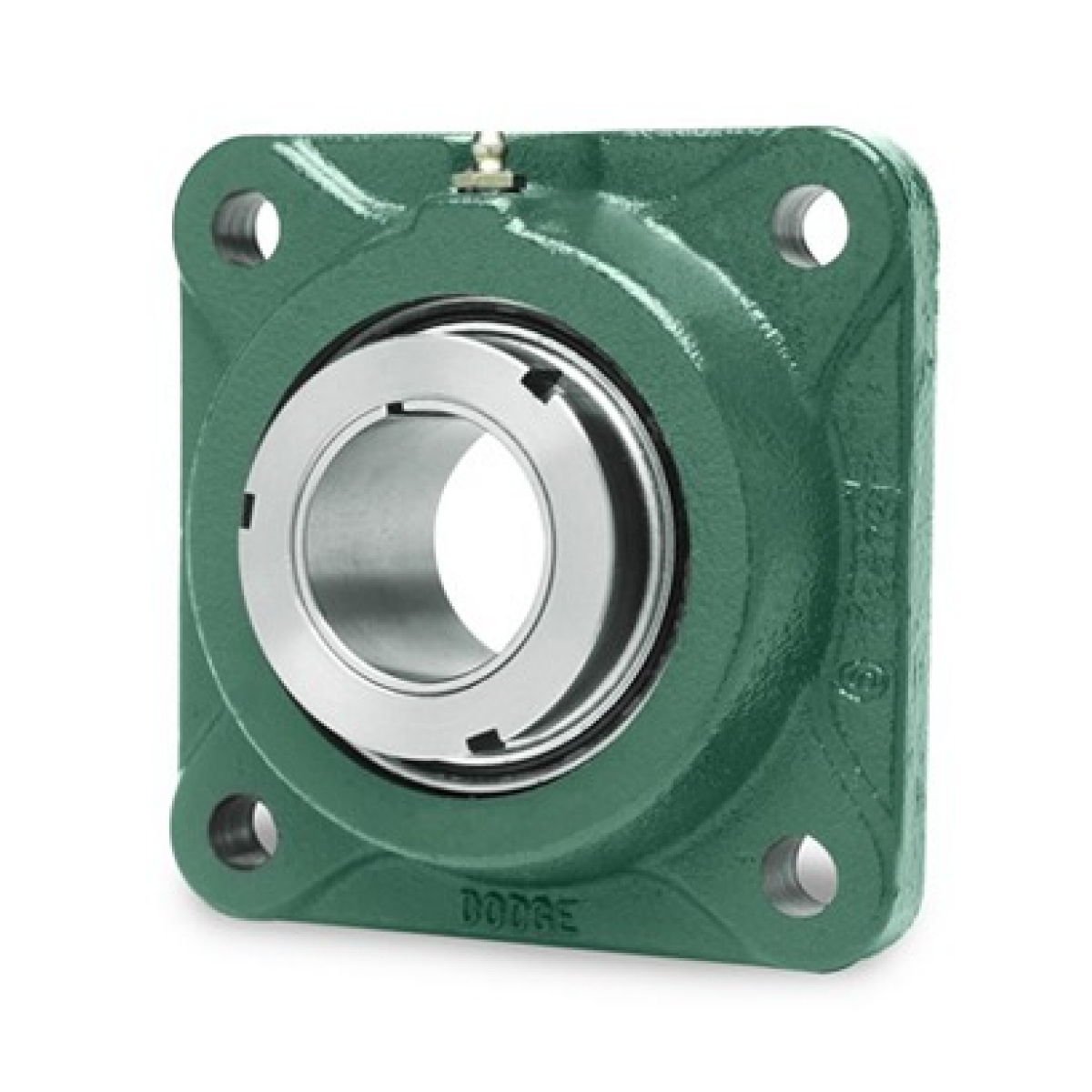

F4B-SCM-207 DODGE 4 Delikli Yataklı Rulman
https://www.baldor.com/mvc/DownloadCenter/Files/CA3000A%20-%20REV%205
| Bore Diameter | 2.4375 in |
|---|---|
| Bolt Center-to-Center Length | 5.8750 in |
| Overall Length/Diameter | 7.3800 in |
| Bore Type | Round |
| Duty Type | Medium Duty |
| Mounting Type | 4-Bolt Flange |
| Housing Material | Cast Iron |
| Locking Device | Set Screw |
| Expansion Type | Non-Expansion Bearing (Fixed) |
| Radial Dynamic Load Capacity | 13995 lb |
| Radial Static Load Capacity | 9838 lb |
| Seal Type | Contact Seal |
| Length Through Bore | 2.78 in |
| Finish/Coating | Uncoated |
| Maximum RPM | 3000 rpm |
| Lubrication Type | Relubricatable |
| Series | 214 |
| Standards Met | UL, AFBMA, AGMA, ASMMA, BSA, CMA, MPTA, PTDA |
| Manufacturer Catalog Number | 126194 |
| Weight | 6,25 KG |
