Description

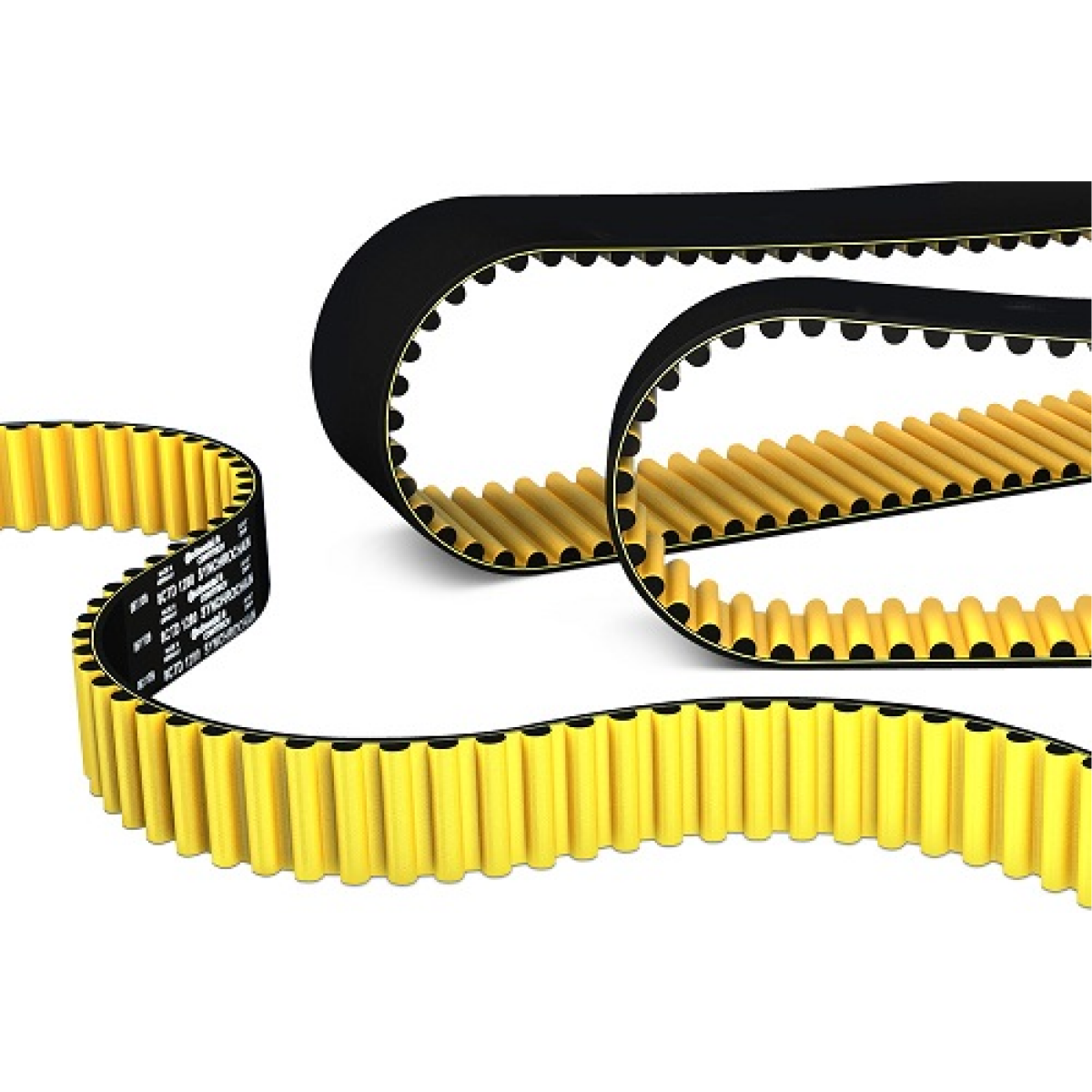

CTD14M 1960 CONTI® SYNCHROCHAIN Karbon Zaman Kayışı
CONTI® SYNCHROCHAIN CARBON
Heavy-duty timing belt for all extreme applications with extremely high torques; also suitable for use as a replacement for chain drives.
- Temperature resistant between -55°C and +80°C, depending on the application (for temperatures lower than -40°C, please contact Continental)
- Increased power
- Longitudinally stable throughout its entire service life
- Resistant to simple oils, greases and fuel
- Moderately resistant to acids and lyes
- Raw materials and production are silicone free
- Ozone resistant
- Suitable for use in tropical climates
- Resistant to aging
- Suitable for reverse flexing/reverse tensioning idlers
- Maintenance-free
- Belt speeds of up to 40 m/s
Technical specifications
- 1. Specially treated fabric
- 2. Polyurethane teeth
- 3. Carbon tension member
- 4. Polyurethane backing
Dimensions
CTD
Profile | Length range Lp (mm) |
---|---|
CTD C8M | 640 – 4480 |
CTD C14M | 994 – 4410 |
