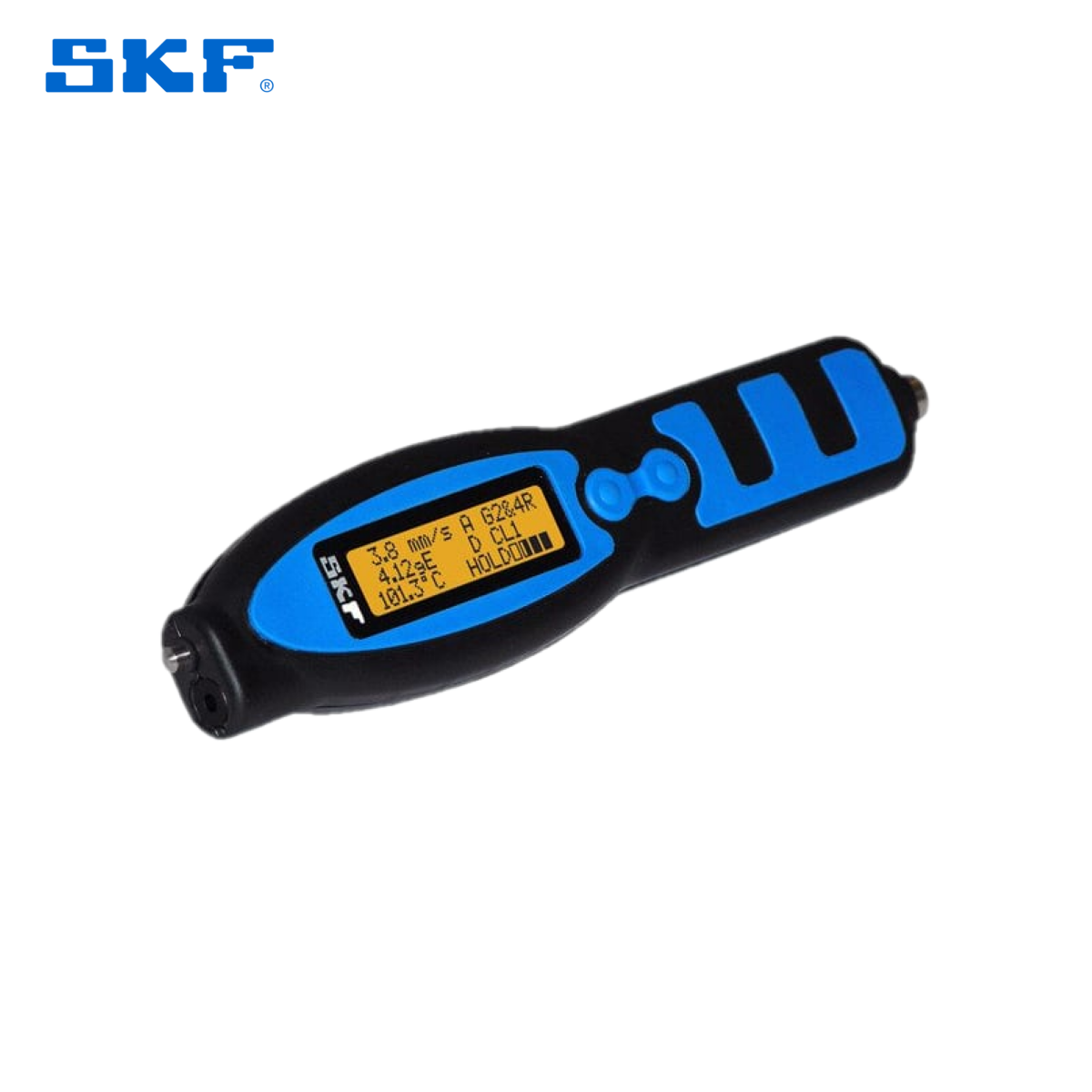

CMAS 100-SL SKF Makina Kondüsyon Ölçüm Aleti
| Designation | CMAS 100-SL | |
| includes: | ||
| SKF Machine Condition Advisor unit | ||
| Belt holster | ||
| Charger, international DC power supply | ||
| User manual | ||
| CD containing: | ||
| – User manual available in PDF files in English, French, German, Portuguese, Spanish and Swedish | ||
| – Link to training on SKF Knowledge Center | ||
| – SKF Machine Condition Advisor trend worksheet (Excel file) | ||
| – SKF Condition Monitoring Essentials catalogue available in PDF file in English | ||
| Vibration pickup: | |
| – Internal: | Integrated piezoelectric acceleration |
| – External: | Accepts a standard 100 mV/g constant current accelerometer |
| Temperature sensor: | Internal infrared temperature sensor |
| Measurements: | |
| – Velocity: | Range: 0,7 to 65,0 mm/s (RMS) (0.04 to 3.60 in./s (equivalent Peak)), meets ISO 10816-3 |
| Frequency: 10 to 1 000 Hz, meets ISO 2954 | |
| – Enveloped acceleration: | Range: 0,2 to 50,0 gE |
| · Frequency: Similar to Band 3 (500 to 10 000 Hz) | |
| – Temperature: | Range: –20 to +200 °C (–5 to +390 °F) |
| Infrared temperature accuracy: 2 °C (4 °F) | |
| Distance: Short range, maximum 10 cm (4 in.) from target | |
| Operating temperature range: | In use: –10 to +60 °C (15 to 140 °F) |
| While charging: 0 to 40 °C (30 to 105 °F) | |
| Storage temperature: | |
| – Less than one month: | –20 to +45 °C (–5 to +115 °F) |
| – More than one month, but less than six months: | –20 to +35 °C (–5 to +95 °F) |
| Humidity: | 95% relative humidity, non-condensing |
| Enclosure: | IP 54 |
| Approvals: | CE |
| Drop test: | 2 m (6.6 ft.) |
| Weight: | 125 g (4.4 oz.) |
| Dimensions: | |
| – Length: | 200,0 mm (7.90 in.) |
| – Width: | 47,0 mm (1.85 in.) |
| – Height: | 25,4 mm (1.00 in.) |
| Battery life: | 10 hours before charging again ( 1 000 measurements) |
| – With external sensor: | Up to 55% less battery life |
| Supported external sensor: | Any standard accelerometer with 100 mV/g sensitivity constant current |
| External sensor power: | 24 V DC at 3,5 mA |
| Charger specifications: | Universal AC/DC wall plug-in |
| Input: 90 to 264 V AC, 47 to 60 Hz | |
| Output: 5 V DC regulated | |
| 3 to 4 hours for a full charge |
