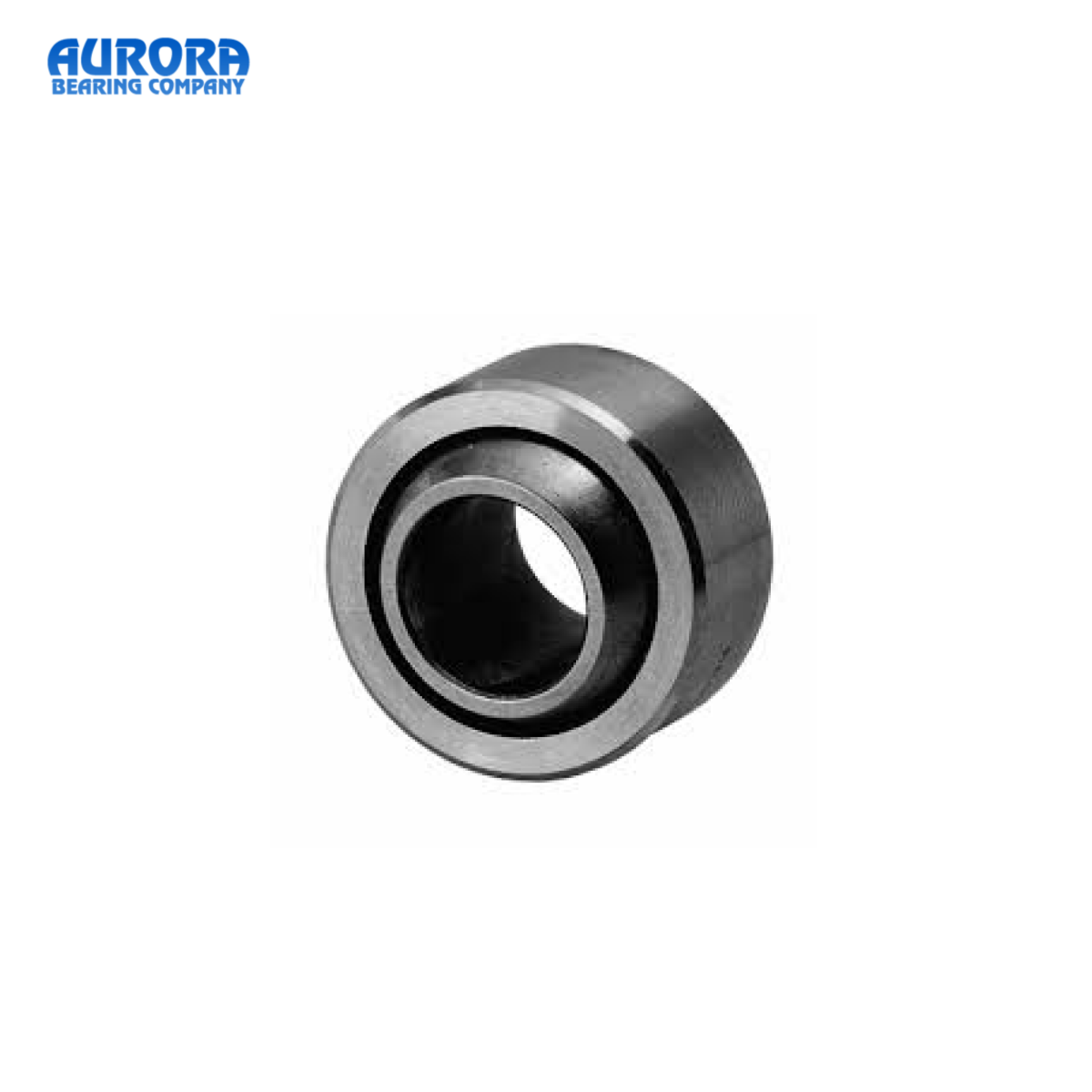

AWC-12TG, AWC-TG & AWC-T Spherical Bearings Wide – SAE Series AS14102 and AS14103

- Ball – 440C stainless steel per AMS 5630, heat treated.
- Race – 17-4PH stainless steel per AMS 5643, heat treated.
- PTFE Liner – (AT 3200) Permanently bonded to race inside diameter, qualified to SAE-AS81820 Type A.
- Temperature Range: -65°F to + 325°F.
- “K” designates Low Torque Bearing fit. No load rotational breakaway torque can be varied to meet specific application requirements.
- Bearings listed are manufactured to conform to the dimensions, materials and configurations of SAE

Specifications

Military Part No.	MS14103-12
Bearing Type	Grooved
B – Ball Bore	.7500 in
D – Outside Diameter	1.3750 in
W – Ball Width	.875 in
H – Race Width	.630 in
O – Ball Shoulder Diameter	.845 in
P – Groove Depth	.055 in
S – Swaging Lip Width	.020 in
G – Groove Pitch Diameter	1.251 in
R – Grooved Radius	.015 in
Ball Diameter	1.250 in
a – Misalignment Angle	13 º
Radial Static Limit Load Capacity	37,000 lbs
Axial Static Limit Load Capacity	7,730 lb
Oscillating Load	26,200 lb
Standard Fit, No Load Rotational Breakaway Torque	.25 to 8.0 in·lb
Approximate Brg. Weight	.24 lb
Options	K= Low Rotational Breakaway TorqueP= Zinc Nickel or Cad Plated Race
