Açıklama

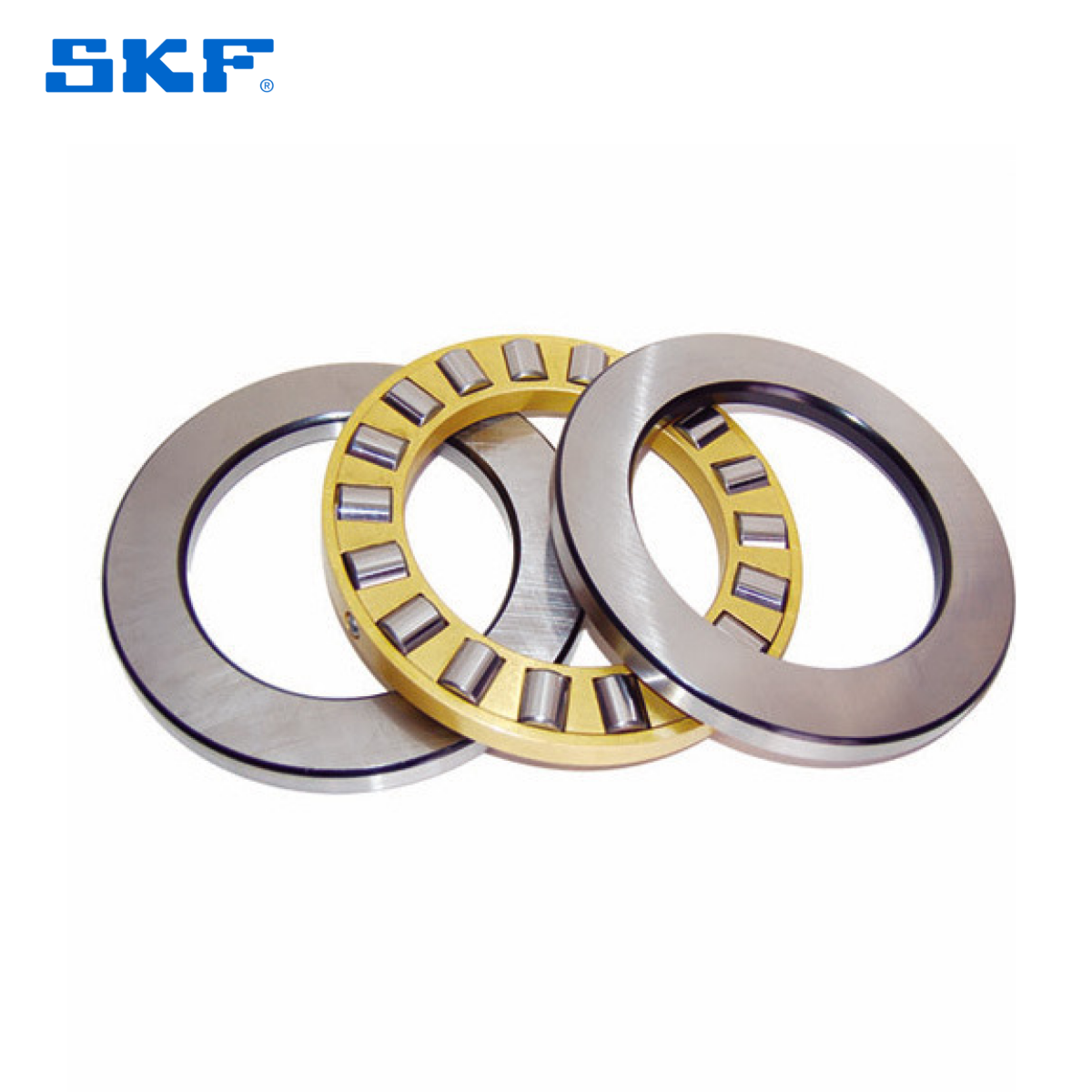

81230 M SKF Eksenel Silindirik Makaralı Rulman
DIMENSIONS
| d |
150 mm
|
|
|---|---|---|
| D |
215 mm
|
|
| H |
50 mm
|
|
| d1 |
212 mm
|
|
| D1 |
153 mm
|
|
| B |
14.5 mm
|
|
| r1,2 |
min. 1.5 mm
|
ABUTMENT DIMENSIONS
| da |
min. 211 mm
|
|
|---|---|---|
| Da |
max. 158 mm
|
|
| ra |
max. 1.5 mm
|
CALCULATION DATA
| Basic dynamic load rating | C |
465 kN
|
|---|---|---|
| Basic static load rating | C0 |
1900 kN
|
| Fatigue load limit | Pu |
170 kN
|
| Reference speed |
630 r/min
|
|
| Limiting speed |
1300 r/min
|
|
| Minimum axial load factor | A |
0.289
|
MASS
| Mass bearing |
7.2 kg
|
|---|
