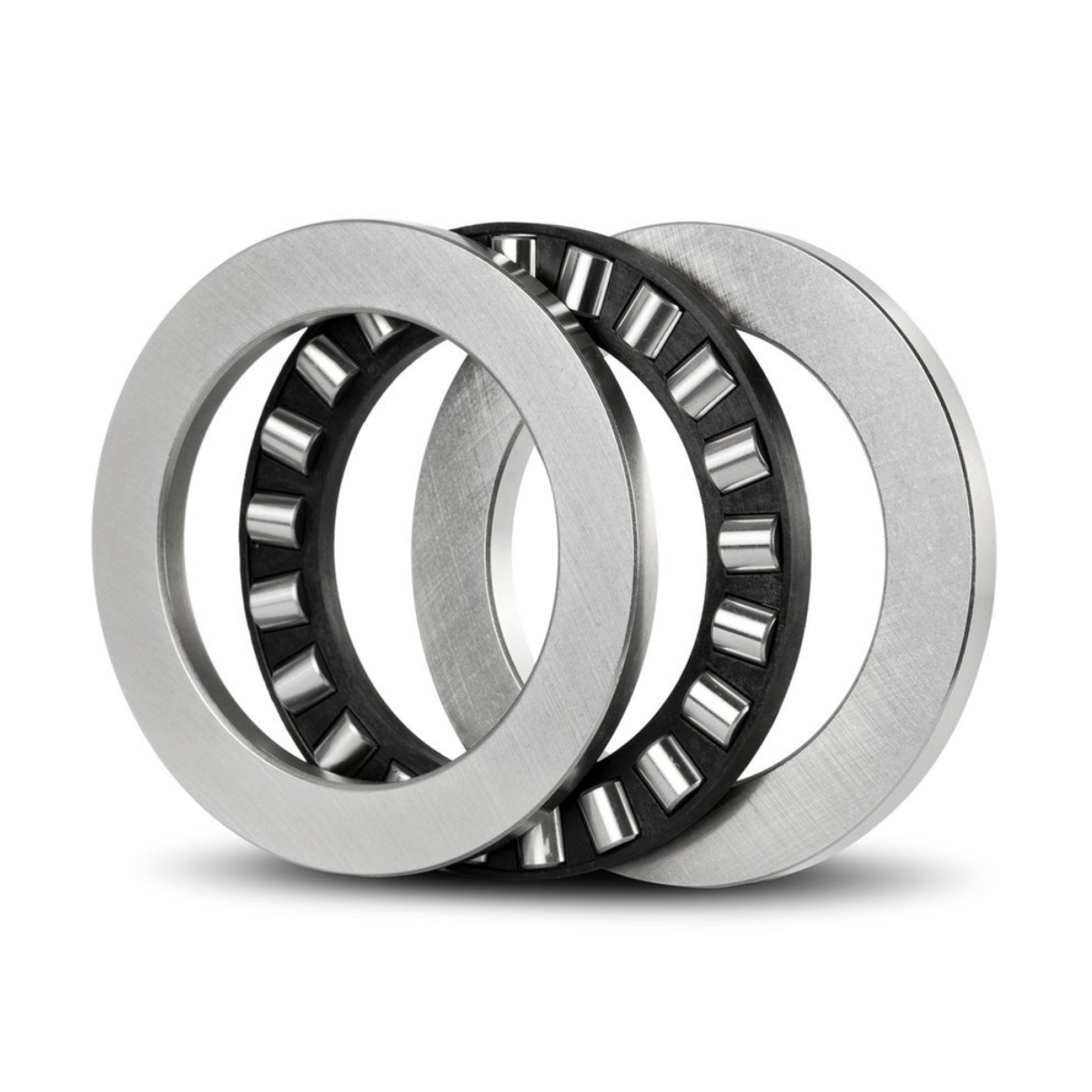

81112-TV Eksenel Silindirik Makaralı Rulman
Axial cylindrical roller bearing
Axial cylindrical roller bearings 811, single direction, comprising K811, GS, WS
Replaces
811 12 TN, 81112TVPB
d
60 mm
Bore diameter
D
85 mm
Outside diameter
T
17 mm
Height
Ca
103,000 N
Basic dynamic load rating, axial
C0a
315,000 N
Basic static load rating, axial
Cua
32,500 N
Fatigue load limit, axial
nG
3,950 1/min
Limiting speed
nϑr
1,360 1/min
Reference speed
0.269 kg
Weight
Dimensions
D1
62 mm
Bore diameter housing washer
d1
85 mm
Rip diameter shaft washer
rmin
1 mm
Minimum chamfer dimension
Mounting dimensions
da min
82 mm
Minimum diameter shaft shoulder
Da max
62 mm
Maximum diameter of housing shoulder
ra max
1 mm
Maximum recess radius
Temperature range
Tmin
120 °C
Operating temperature min.
Tmax
-30 °C
Operating temperature max.
Additional information
K81112-TV
Axial roller and cage assembly
GS81112
Housing Washer
WS81112
Shaft washer
LS6085
Track Washer
