7413 BCBM SKF

432,00 389,00

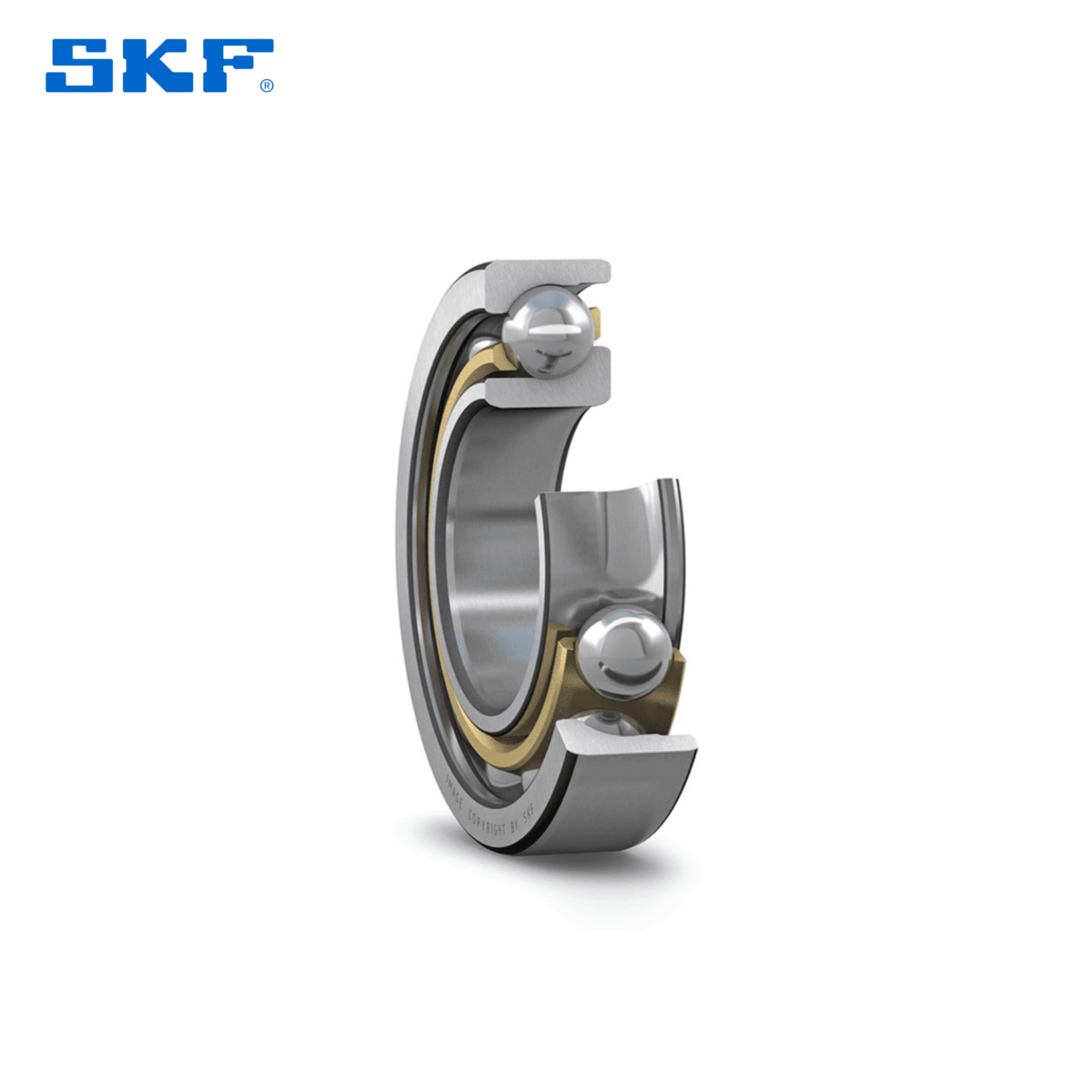

7413 BCBM SKF Eğik Bilyalı Rulman

Açıklama

7413 BCBM SKF Eğik Bilyalı Rulman

Angular contact ball bearings, single row

  • Tolerances: Normal (metric), P6, P5, Normal (inch)
  • Internal clearance: CA+CB+CC, G
  • Preload: GA+GB+GC

Bearing interfaces

  • Seat tolerances for standard conditions
  • Tolerances and resultant fit

Technical specification

DIMENSIONS

d
65 mm
D
160 mm
B
37 mm
d1
≈ 101.38 mm
d2
≈ 83.75 mm
D1
≈ 125 mm
a
65 mm
r1,2
min. 2.1 mm
r3,4
min. 2.1 mm

ABUTMENT DIMENSIONS

da
min. 55 mm
Da
max. 110 mm
Db
max. 144.5 mm
ra
max. 2 mm
rb
max. 2 mm

CALCULATION DATA

Basic dynamic load rating C
130 kN
Basic static load rating C0
96.5 kN
Fatigue load limit Pu
3.8 kN
Reference speed
5300 r/min
Limiting speed
7000 r/min
Calculation factor A
0.182
Calculation factor kr
0.1
Calculation factor e
1.14
SINGLE BEARING OR BEARING PAIR ARRANGED IN TANDEM
Calculation factor X
0.35
Calculation factor Y0
0.26
Calculation factor Y2
0.57
BEARING PAIR ARRANGED BACK-TO-BACK OR FACE-TO-FACE
Calculation factor X
0.57
Calculation factor Y0
0.52
Calculation factor Y1
0.55
Calculation factor Y2
0.93

MASS

Mass bearing
4 kg
