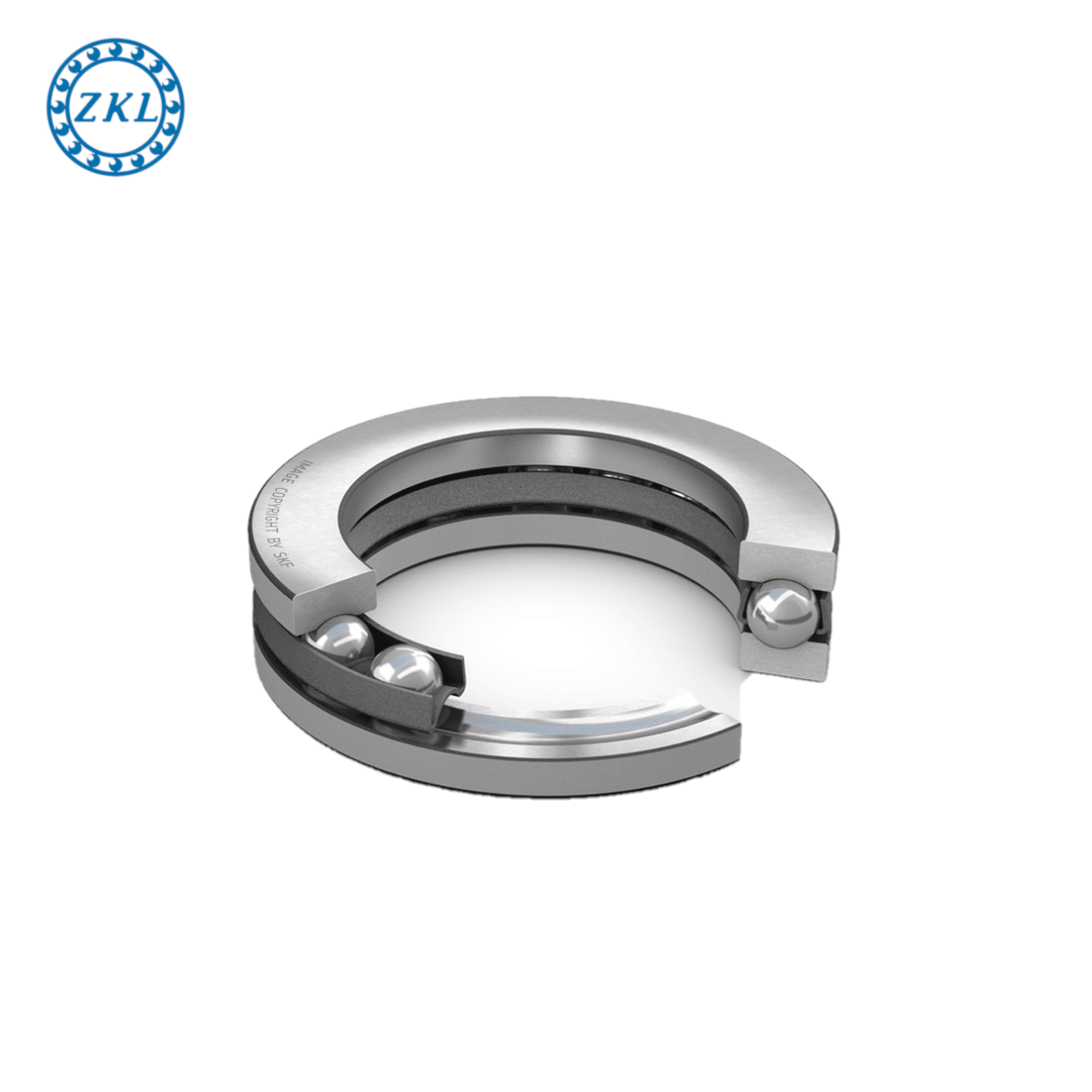

51203 P6 ZKL EKSENEL SABİT BİLYALI RULMAN
Bearing in the new standard NEW FORCE
Dimensions | Basic load rating | Fatique load limit | Limiting speed for lubrication with | |||||||
---|---|---|---|---|---|---|---|---|---|---|
d | D | d1 | D1 | H | rs (min) | dynamic Cr | static Cor | Pu | Grease | Oil |
mm | kN | kN | min-1 | |||||||
17 | 35 | 35 | 19 | 12 | 0.6 | 17.820 | 26.600 | 1.210 | 5 600 | 7 500 |
Bearing designation | Abutment and fillet dimensions | Weight | Minimum axial load factor | |||
---|---|---|---|---|---|---|
d | da | Da | ra | |||
mm | kg | |||||
51203 | 17 | 28 | 24 | 0.6 | 0.05 | 0.004 |
