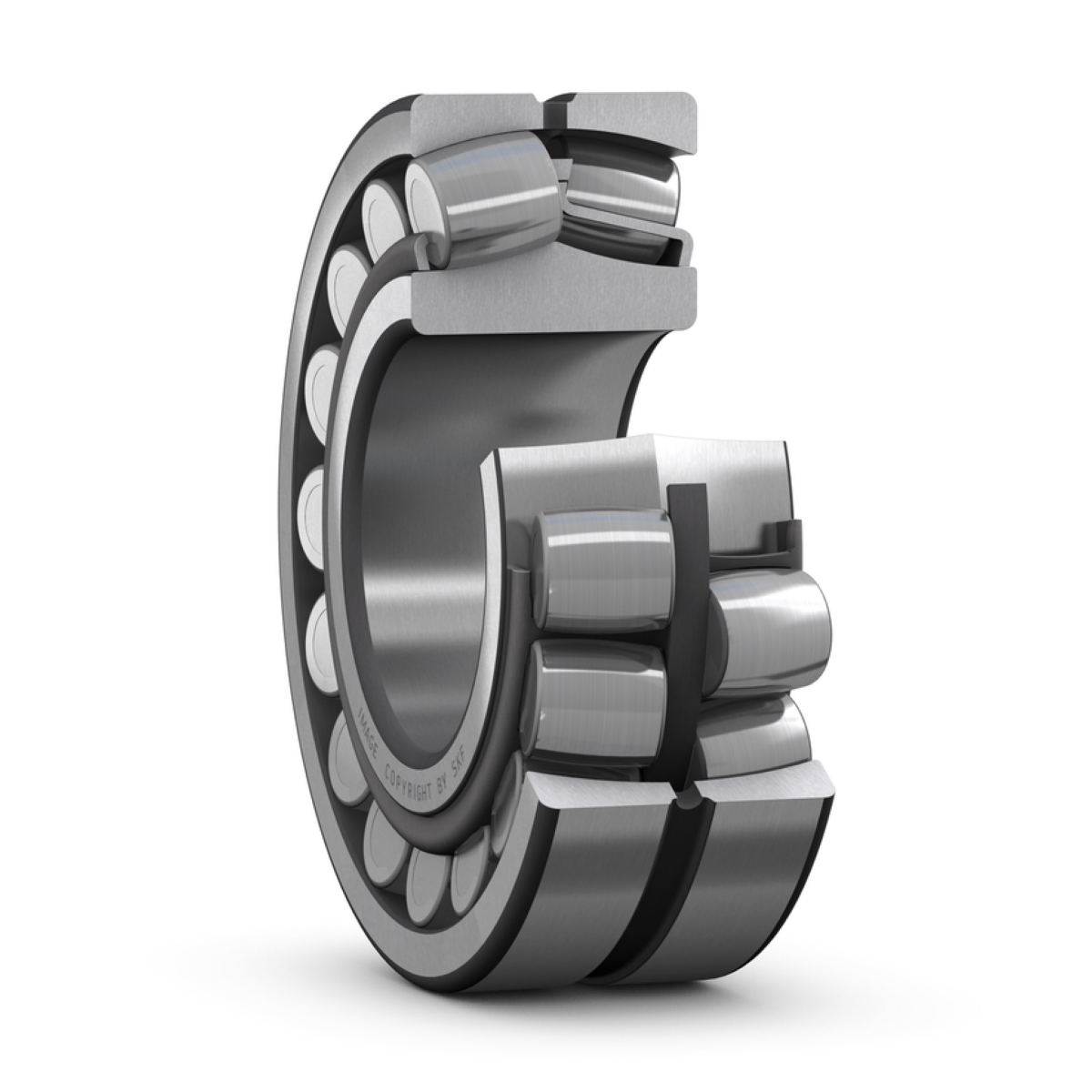

22326 CCJA/W33VA405 SKF Oynak Makaralı Rulman
Spherical roller bearings
Bearing data
Bearing interfaces
DIMENSIONS
| d |
130 mm
|
|
|---|---|---|
| D |
280 mm
|
|
| B |
93 mm
|
|
| d2 |
≈ 164 mm
|
|
| D1 |
≈ 233 mm
|
|
| b |
16.7 mm
|
|
| K |
9 mm
|
|
| r1,2 |
min. 4 mm
|
ABUTMENT DIMENSIONS
| da |
min. 147 mm
|
|
|---|---|---|
| Da |
max. 263 mm
|
|
| ra |
max. 3 mm
|
CALCULATION DATA
| Basic dynamic load rating | C |
1 176 kN
|
|---|---|---|
| Basic static load rating | C0 |
1 320 kN
|
| Fatigue load limit | Pu |
114 kN
|
| Reference speed |
1 800 r/min
|
|
| Limiting speed |
2 400 r/min
|
|
| Calculation factor | e |
0.35
|
| Calculation factor | Y1 |
1.9
|
| Calculation factor | Y2 |
2.9
|
| Calculation factor | Y0 |
1.8
|
| Permissible rotational acceleration (oil lubrication) |
853 m/s²
|
|
| Permissible linear acceleration (oil lubrication) |
196 m/s²
|
MASS
| Mass bearing |
29 kg
|
|---|
