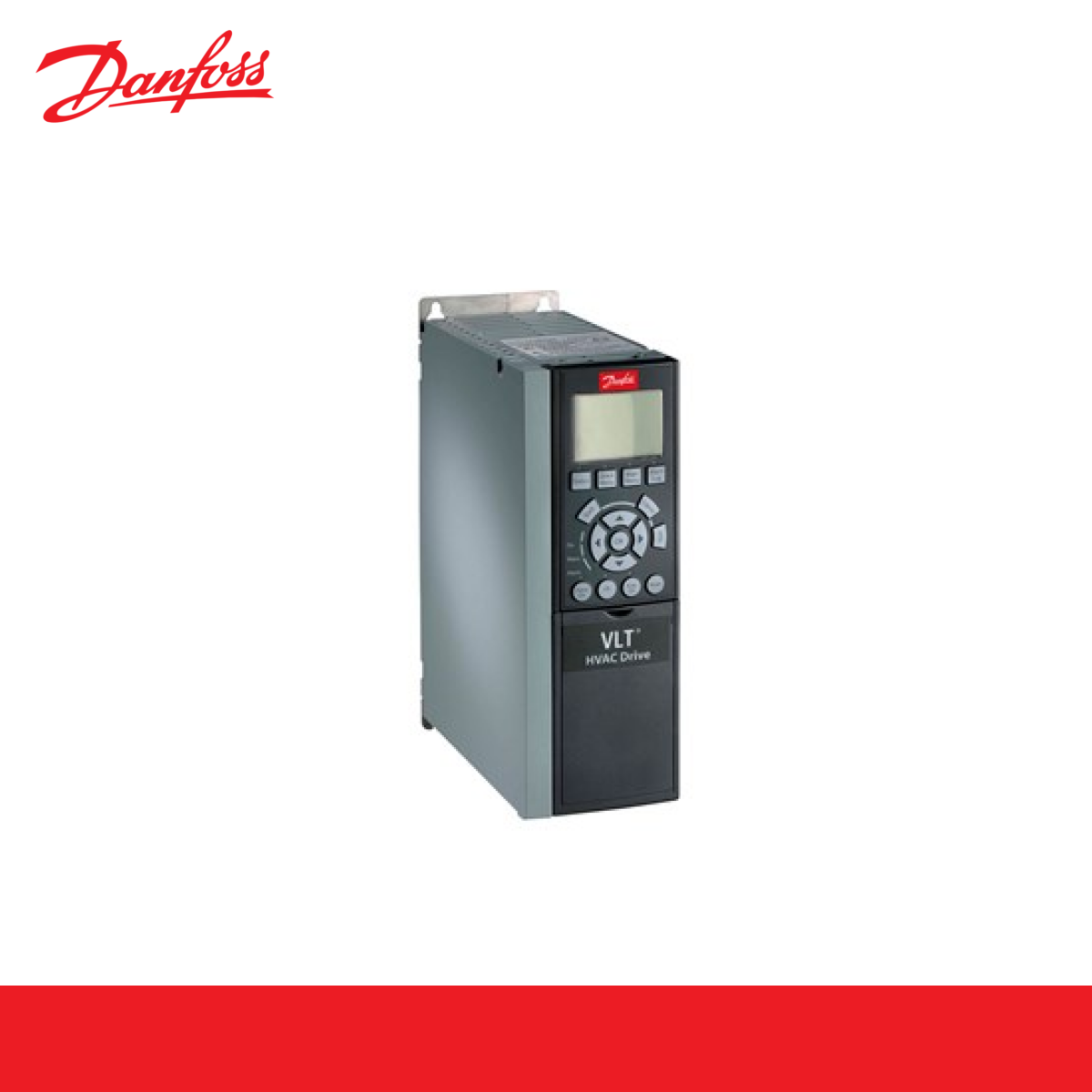

131G0245 DANFOSS FC-302P18KT5E20H1XNXXXXSXXXXA0BXCXXXXDX
| Gross weight | 20.4 kg | ||
| Net weight | 20.1 kg | ||
| Volume | 144.67 l | ||
| EAN | 5702427607941 |
VLT® AUTOMATIONDRIVE FC 300 SERIES
| Product Group | (FC-) VLT® AutomationDrive FC- | ||
| Series | 302 | ||
| Power Rating | (P18K) 18.5 KW / 25 HP | ||
| Phase | (T) Three phase | ||
| Mains Voltage | (5) 380 – 500 VAC | ||
| Enclosure | (E20) IP20 / Chassis | ||
| RFI Filter | (H1) RFI Class A1/B (C1) | ||
| Brake – Safe Stop | (X) No brake chopper | ||
| LCP | (N) Numerical Loc. Cont. Panel | ||
| Coating PCB | (X) Not coated PCB | ||
| Mains Option | (X) No Mains Option | ||
| Adaptation A | (X) Standard Cable Entries | ||
| Adaptation B | (X) No adaptation | ||
| A Option | (A0) PROFIBUS DP MCA 101 | ||
| B Option | (BX) No B Option | ||
| C0 Option MCO | (CX) No C0 option | ||
| C1 Option | (X) No C1 option | ||
| C Option Software | (XX) No software option | ||
| D Option | (DX) No D option | ||
| Frame Size | B4 | ||
| Typecode Part 1 | FC-302P18KT5E20H1XNX | ||
| Typecode Part 2 | XXXSXXXXA0BXCXXXXDX | ||
| Calculated Gross Weight | 21.3 | ||
| Calculated Net Weight [kg] | 21 | ||
| Material Gross Weight | 20.4 | ||
| Material Net Weight | 20.1 | ||
| Modelcode01 | FC-302P18KT5E20H1XNX | ||
| Modelcode02 | XXXSXXXXA0BXCXXXXDX | ||
| Product Catalog | NO VIEW | ||
| Product View (Switch) | Global (Standard) | ||
| Software Language Pack | (X) Standard Language Pack | ||
| Software Release | (SXXX) Latest release std. SW. | ||
| Vendor | Cannot Determine Vendor |
